TR High Speed Double Layer Tablet Press Machine

Meets GMP requirements.

An easy disassembled structure tablet machine has high maintainability.

Tablets formed Twice by main pressing and pre-pressing.Double-sided output, high efficiency.

Can press two layers tablets with different colors, annular tablets, round tablets, engraved tablets and irregular tablets. Available for pharmaceutical factory, food and chemical industries.

Central auto lubrication system.
High Speed Double Layer Tablet Press Machine

Model	TRS-45	TRS-55	TRS-69	TRS-75
Punch & die type(EU)	D	B	BB	BB
Number of Press Station	45	55	69	75
Max Tablet Diameter (mm)	25	16	13	13
Max abnormal prolate axis size(mm)	25	18	16	16
Max Output (Tablet/h)	390,000	470,000	580,000	630,000
Max Filling Depth (mm)	20	18	18	18
Max main pressure(KN)	100	100	100	100
Max Pre-pressure (KN)	20	20	20	20
Idle load noise dB(A)	<75
Power	380V 50HZ 10.5-13KW
Size L x W x H (mm)	1260×1260×1950
Weight (kg)	3750

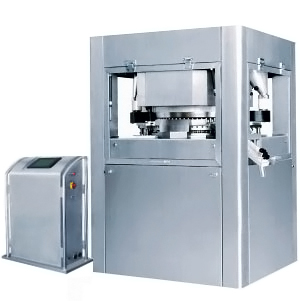

TRS Series of High-Speed Double-Sided Tablet Press Machine

High pressure, large diameter of tablets, high yield, accurate with low maintenance！

Experienced & advanced design.

An ideal equipments for mass production of tablets.

Meets GMP requirements

Can press two layers tablets with different colors, annular tablets, round tablets, engraved tablets and irregular tablets. Available for pharmaceutical factory, food and chemical industries.

Series of High-Speed Double-Sided Tablet Press Machine

Series of High-Speed Double-Sided Tablet Press Machine

Model	TRS-49	TRS-61	TRS-73	TRS-79
Punch & die type(EU)	D	B	BB	BBS
Number of Press Station	49	61	73	79
Max Tablet Diameter (mm)	25	16	13	11
Max abnormal prolate axis size(mm)	25	18	16	12
Max Output (Tablet/h)	430,000	530,000	630,000	680,000
Max Filling Depth (mm)	20	18	18	18
Max main pressure(KN)	100	100	100	100
Max Pre-pressure (KN)	100	100	100	100
Idle load noise dB(A)	<75
Power	380V 50HZ 13.5-15KW
Size L x W x H (mm)	1310×1310×1980
Weight (kg)	4600

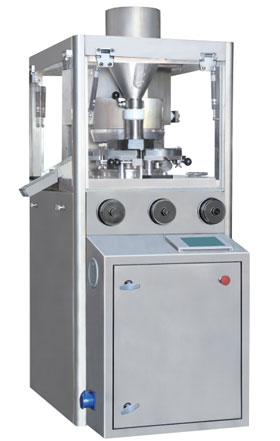

TR Economic Series of High-Speed Rotary Tablet Press

An ideal equipments for economic solutions and samller quantity production of tablets.

Durable and low maintenance.

Meets GMP requirements
Economic Series of High-Speed Rotary Tablet Press

Model	TR15	TR26	TR32	TR40
Punch & die type(EU)	D	D	B	BB
Number of Press Station	15	26	32	40
Max Tablet Diameter (mm)	25	25	16	13
Max abnormal prolate axis size(mm)	25	25	18	16
Max Output (Tablet/h)	70,000	170,000	210,000	260,000
Max Filling Depth (mm)	20	20	20	20
Max main pressure(KN)	100	100	80	80
Max Pre-pressure (KN)	12	20	20	20
Idle load noise dB(A)	＜ 75
Power	380V 50HZ 9.5KW
Size L x W x H (mm)	780×860×1930
Weight (kg)	1650
