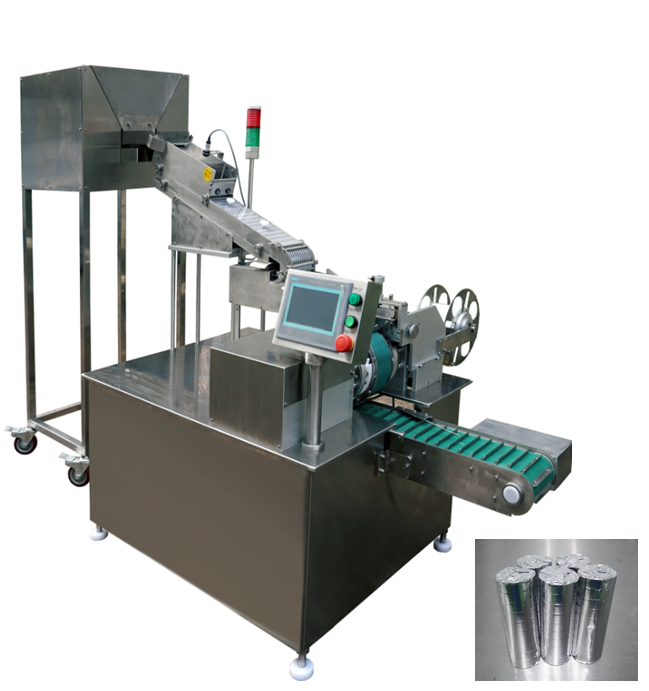

TRFW-4 Machine for group packaging of tablets in foil paper
(Capacity: 40 rolls per minute)

TRFW-4 Foil/Paper Packing Machine
designed and suitable for packaging
several pieces of effervescent tablets with
using aluminum foil and
laminated paper. This car
controlled by PLC, with stepper motor
and a pneumatic cylinder. Available
high performance and reliability.
Operation and service are very
simple.

She can work oncompletely automatically,
warning and stop for without
foil paper and no tablets, all
contact parts with effervescent tablets
materials used are SUS316 from
stainless steel.

Basic funspecials:

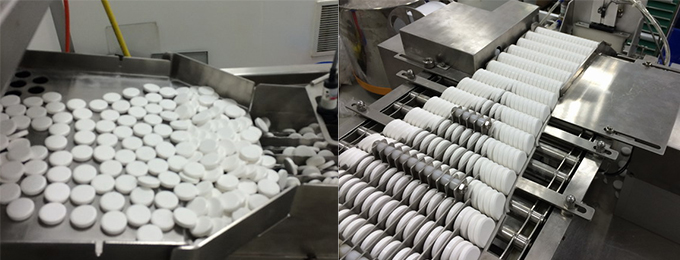

● Vibrating system for feeding effervescent tablets: The tablets are manually poured into the loading hopper, which is equipped with a vibration mechanism, under the action of which they fall into the guides for preparing the packaging. It will automatically stop when there is an overload of tablets, and automatically start when there is a shortage of tablets. All devices work automatically.
● Effervescent Tablet Orientation System: This device is designed to place effervescent tablets according to the setting of position and quantity.



● Paper feeding and wrapping system: Place the papers into the holder, the device can automatically organize the wrapping papers into the wrapping device in feeding standby mode. Effervescent tablets will wrap automatically. The paper is automatically cut after each package.
● Controller: This machine is controlled by PLC controller, automatic warning and stop when any equipment malfunction.

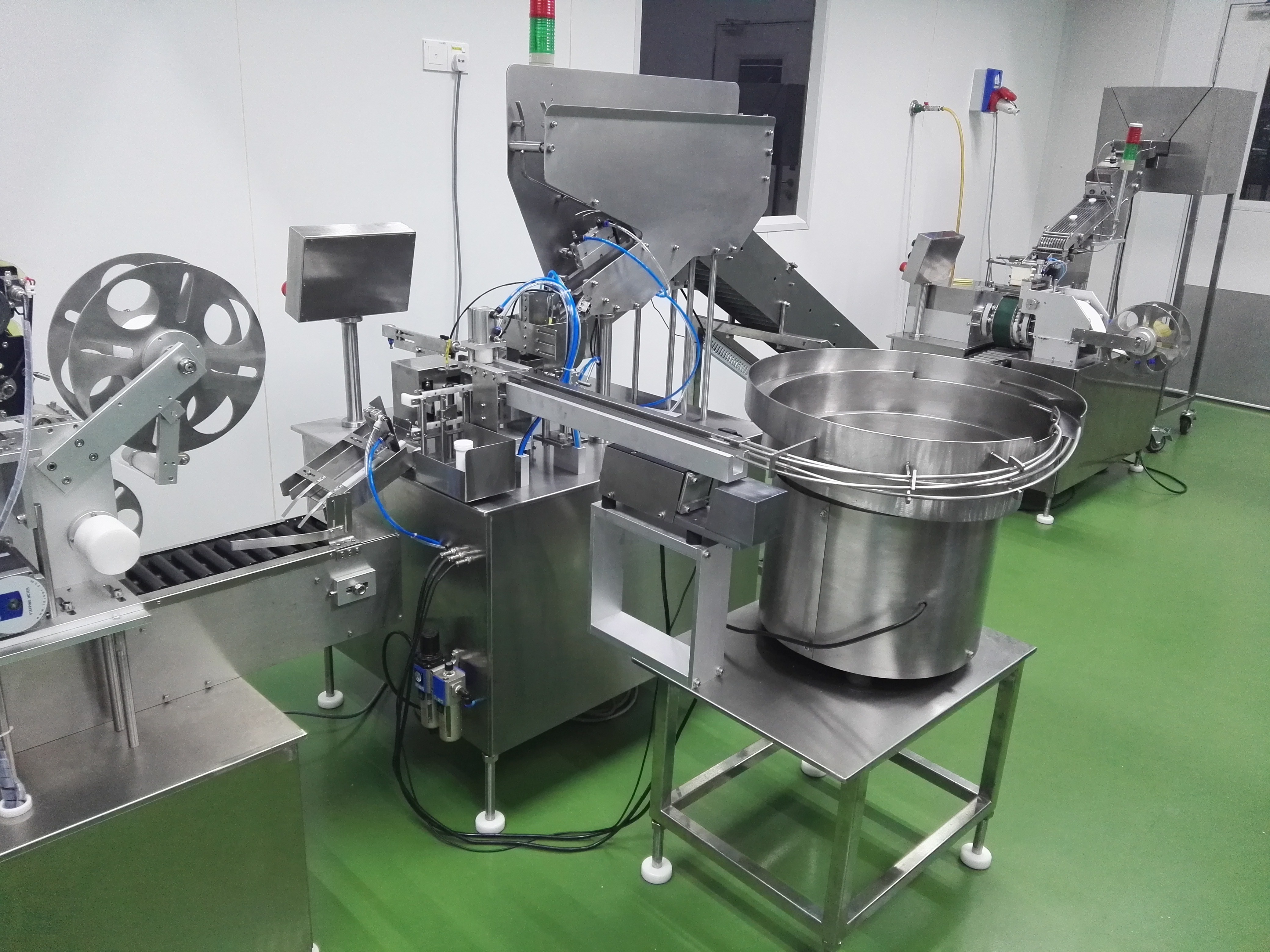

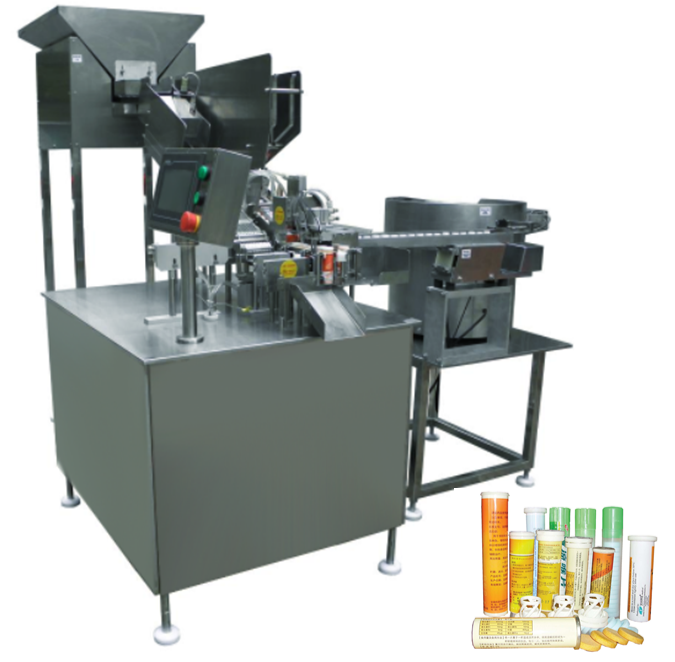

TRTF-3 Machine for filling effervescent tablets in rolls into tubes
(Capacity: 40 tubes per minute)

TRTF-3 Effervescent Tablet Filling Machine
in rolls in tubes designed and suitable for
filling effervescent tablet rolls in pipes.
This machine is controlled by PLC, with stepper
motor and pneumatic cylinder.
There are high performance and reliability.
Operation and maintenance are very simple.

It can work fully automatically,
warning and stop for no tubes
/caps and without tablets, all in contact
parts are used materials SUS316 from
stainless steel.

Main functions:
● Vibrating system for feeding caps:
place the lids in the hopper, vibrating
the system automatically sends covers
into the guide tracks to orient the cover. It can automatically stop when the caps are overloaded, and automatically start when there are not enough caps.
● Capping system: The caps are automatically compressed onto the tubes. It can stop automatically without rolls and without tubes. Pipes without covers will be rejected.

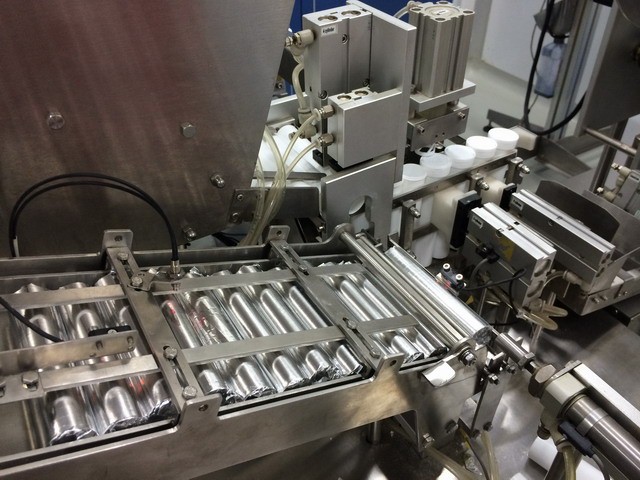

● Roll Guides: The effervescent tablet rolls will be transported into the roll guides for pipe filling.

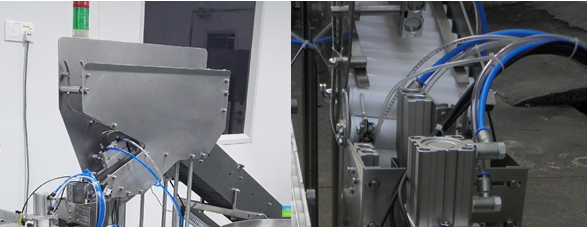

● Loading tubes: Manually place the tubes into the hopper according to the setting direction for preparation.



● Roll feeding system: The effervescent tablet rolls will be pushed into the tubes automatically. It can stop automatically without tubes.
● Control unit: The device is controlled by PLC, can automatically warn and stop if any equipment malfunction.
