TIME ROLLING · OIL & GAS DRILLING
Well Control Equipment & BOP Systems
Time Rolling supplies custom well control equipment, including gate and choke valves, swivel joints, crossover adapters, integral fittings, manifolds and blowout preventers. Product pressure ratings and specifications depend on the selected equipment.
- Manifold working pressure
- Up to 20,000 psi
- BOP reference
- API 16A
- Control unit reference
- API 16D

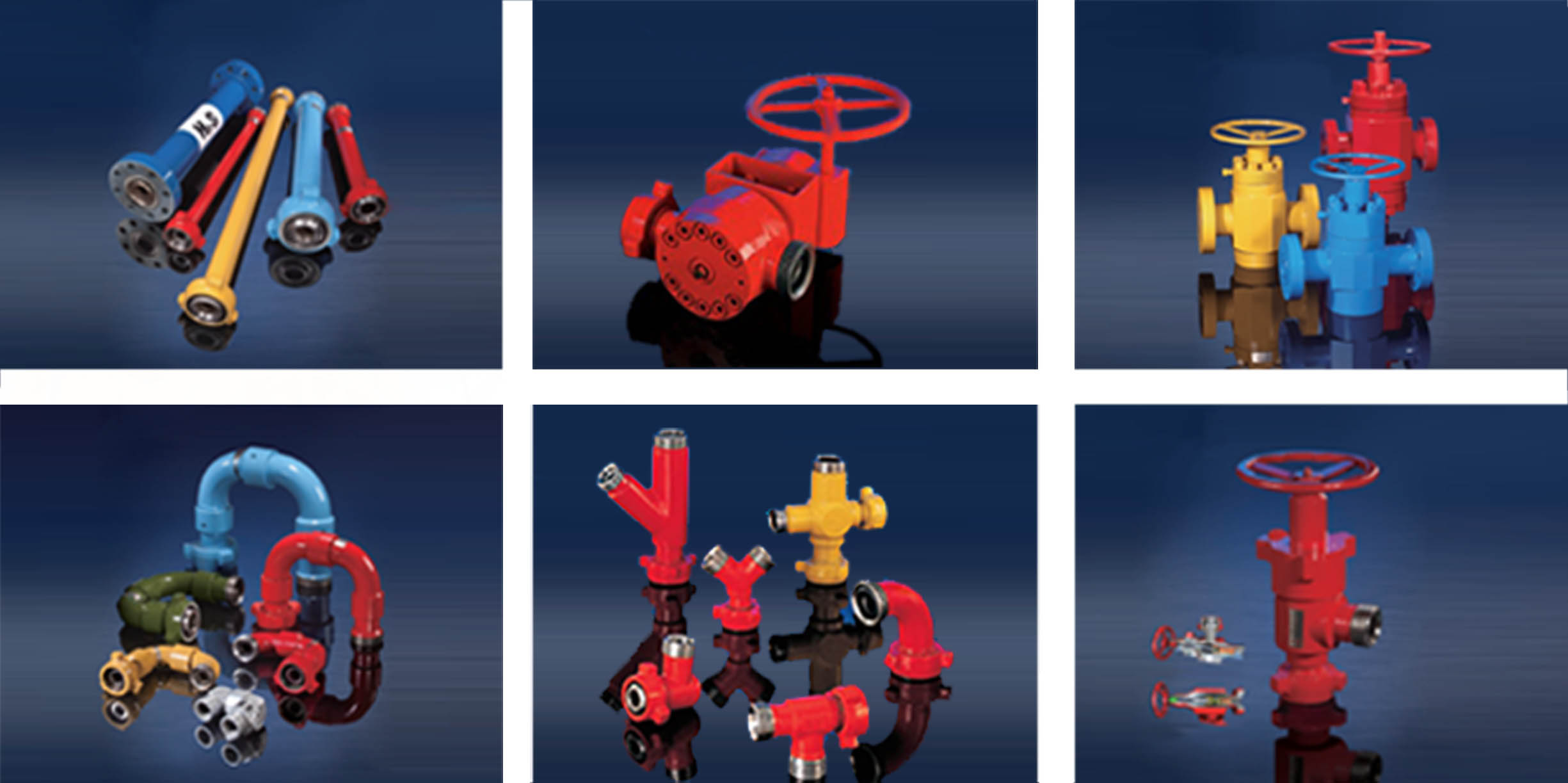

High-pressure fluid control components
Our well control range includes products for working pressures up to 20,000 psi. Each component is tested, with selection based on the specified operating conditions.

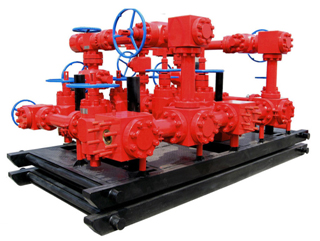

Choke manifolds
- API Spec 16C / 6A.
- Working pressure: 3,000–20,000 psi.
- Nominal bore: 2-1/16 to 4-1/16 inches.
- Erosion-resistant valve groups with sealing performance designed for service life.

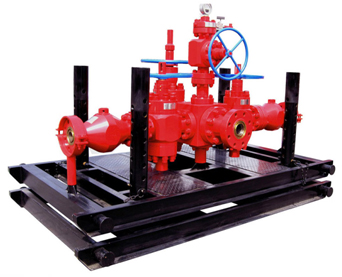

Kill manifolds
- API Spec 16C / 6A.
- Working pressure: 3,000–20,000 psi.
- Nominal bore: 2-1/16 to 4-1/16 inches.
- Erosion-resistant valve groups and durable sealing components.

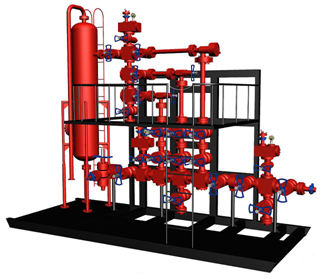

Offshore vertical manifolds
A compact vertical arrangement provides the functions of a horizontal manifold for offshore drilling platforms. A fully enclosed yoke helps resist seawater exposure and provides structural support.
- API Spec 16C / 6A.
- Working pressure: 5,000–10,000 psi.
- Nominal bore: 2-1/16 to 3-1/16 inches.

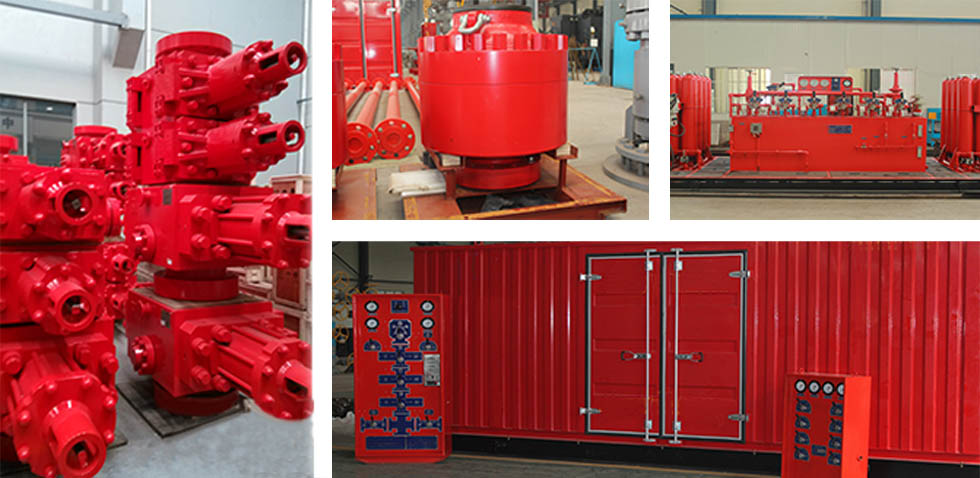

Annular BOPs, ram BOPs and control units
Time Rolling annular and ram blowout preventers are designed and manufactured to API Spec 16A. The product range covers 3,000–15,000 psi, with ram sizes selected for the required configuration.
- Alloy-steel pressure-bearing components provide strength and impact toughness.
- The rubber core design reduces friction during opening and closing and supports sealing.
- Sealing cores are interchangeable with matching types used by major BOP brands.
- Short piston stroke with a wear ring and lip-type seals.
- API 16D BOP control units are available for different BOP stack specifications, with low-noise operation and sealing performance.
