Coiled Tubing Units
Packaged coiled tubing units bring the main intervention components together in one system for land-based and offshore wells. Time Rolling offers configurations matched to the operation, equipment layout and working environment.
- TR-160 · TR-290 · TR-380
- 3 models
- Injector configurations
- 50K–85K
- Operating environments
- Onshore & offshore

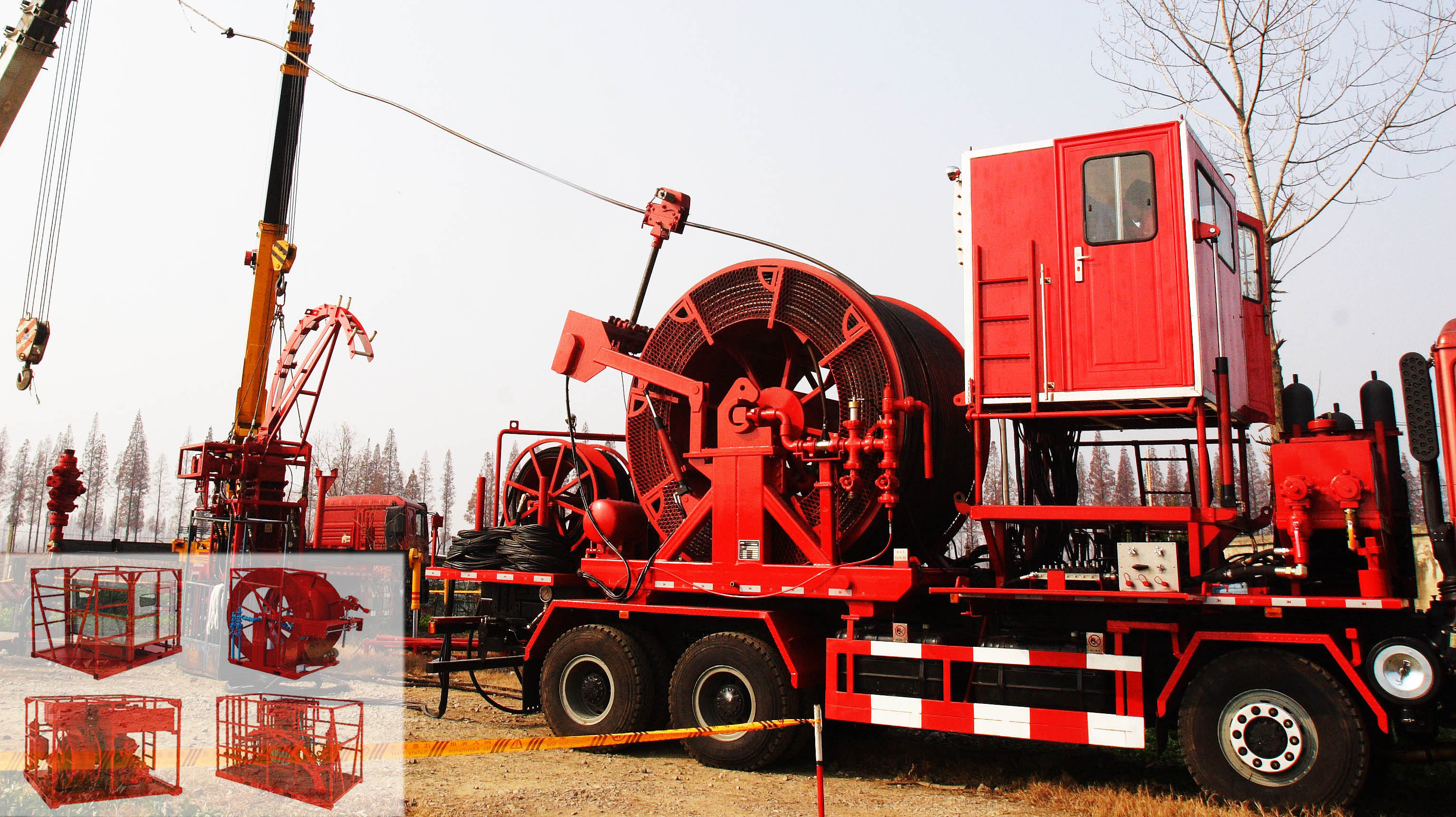

A complete coiled tubing system
The coiled tubing equipment package is designed for workover and well intervention duties. Components are selected as a system, with custom arrangements available for specific operating requirements.
Established-brand components and service-oriented equipment selection help simplify maintenance. Compare lifting force, snubbing force, tubing capacity and working pressure before specifying a unit.
Well intervention applications
- Well washing and sand-plug flushing.
- Paraffin removal and acidizing.
- Nitrogen injection and gas lifting.
- Fishing, milling and electric logging.
Coiled tubing unit specifications
Compare TR-160 (50K), TR-290 (65K) and TR-380 (85K) lifting and snubbing ratings, tubing capacity, working pressure, power packs and BOP configurations.
| Model | TR-160(50K) | TR-290(65K) | TR-380(85K) |
|---|---|---|---|
| Max. rated lifting force kN(lbs) | 227(50000) | 290(65000) | 380(85000) |
| Max. snubbing force kN(lbs) | 113.5(25000) | 140(32500) | 190(42500) |
| Max. speed(high speed) m/min(ft/min) | 60(197) | 60(197) | 60(197) |
| Max. Speed(low speed) m/min(ft/min) | 30(98) | 30(98) | 30(98) |
| Tubing reel Capacity m | 4500-1.5 in 3000-1.75 in | 6100-1.5 in 4200-1.75 in | 7500-1.5 in 6300-1.75 in |
| Rated working pressure MPa(psi) | 70(10000) | 70(10000) | 70(10000) |
| Power pack | CAT engine + Pump | CAT engine + Pump | CAT engine + Pump |
| Data Acquisition System | Equiped | Equiped | Equiped |
| Injector | 50K | 65K | 85K |
| BOP | 2-9/16” ram | 3-1/16” ram | 3-1/16” or 4-1/16” ram |
| Crane | Hydraulic Crane 12T | Hydraulic Crane 16T | Hydraulic Crane 18T |
| Optional is available for cold temperature package and other manufactures/models | |||
