Wellheads & Christmas Trees
Time Rolling wellhead equipment includes tubing heads, casing heads and Christmas trees for oil and gas production. Select sealing arrangements, flange connections, outlets and chokes for the required well configuration.
- Tubing heads · casing heads · trees
- 3 equipment groups
- Christmas tree design standard
- API 6A
- Choke valve options
- Fixed or adjustable
Tubing heads
The straight-bore bowl uses a 45° landing shoulder to help protect sealing areas from drilling tools and prevent wedging of tubing hangers, bowl protectors and test plugs.
Secondary sealing for the last casing string can use an integrated “OO” seal or plastic-injection arrangement. Reducer bushings include “4-O” and “PE” pressure-energized types.
- Upper-flange lockdown screws for packoff re-energization and tubing-hanger retention.
- Lower-flange grease fitting and test port for the secondary seal.
- Body material options for severe service conditions.
- Line-pipe or flanged, studded outlets.
Casing heads
Casing heads use a mandrel and anchor hanger within the housing. Casing and hanger sizes are selected for the required casing-support arrangement.
Top connections can use API 6B or API 6BX flanges. Side outlets can be configured with line-pipe or specified threaded connections, and simplified pressurization casing heads are also available.

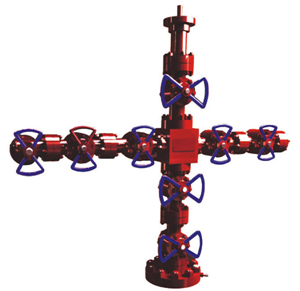

API 6A Christmas trees
Time Rolling Christmas trees are designed and manufactured to API Specification 6A. Conventional or integral structures are available to suit the customer’s required configuration.
Both fixed and adjustable choke valves are available for the tree assembly.
