TIME ROLLING · PHARMACEUTICAL & MEDICAL

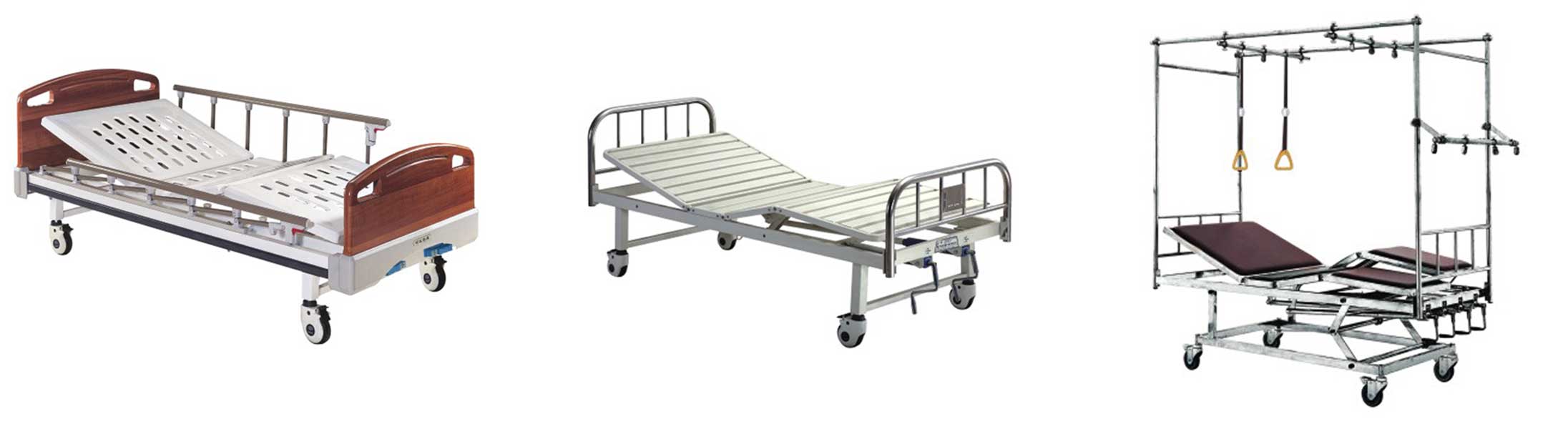

Hospital Beds & Furnitures

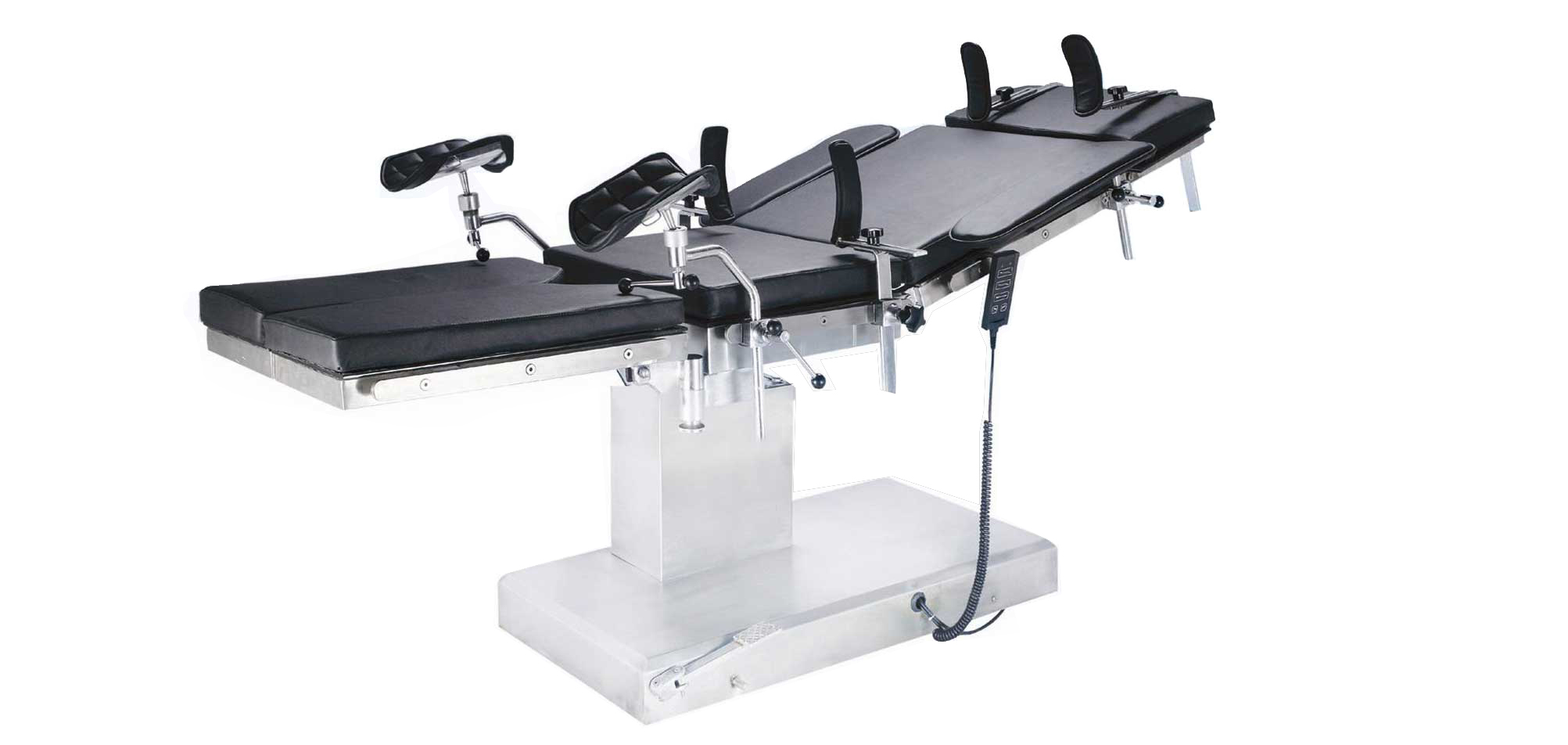

Electric Multi-function Operation Table

TR’s electric mult-function operation table is a mechanical transmission of electrical power, security, an integrated voltage-controlled surgical operating table. Table and glass materials, designed for use with C-arm design, can be directly carried out the operation C-arm X-ray or medical check-up. Easy to accurately and safely implement, abdominal surgery, ENT, urology, orthopedics. It can replace the gynecological, obsteric and other surgical uses. Flexible in operation, smooth and reliable, low noise, durable and high safety, it can be arbitrary setting to achieve a variety of operations in a variety of transformations. Parts can be removed, it is easy to be used.
|
Item |
Specification |
|---|---|
|
Table Size |
2050mmx520mmx750mm/1100mm |
|
Table Horizontal Movement |
400mm-600mm |
|
Lifting Table |
200mm-300mm |
|
Before and after tilts |
Over 25° |
|
Left and Right |
Over 20° |
|
Back up bending |
Over 70° |
|
External lumbar adjust the bridge height |
120mm |
|
Legs folded under board action |
Over 90°, external rotation over 90° |

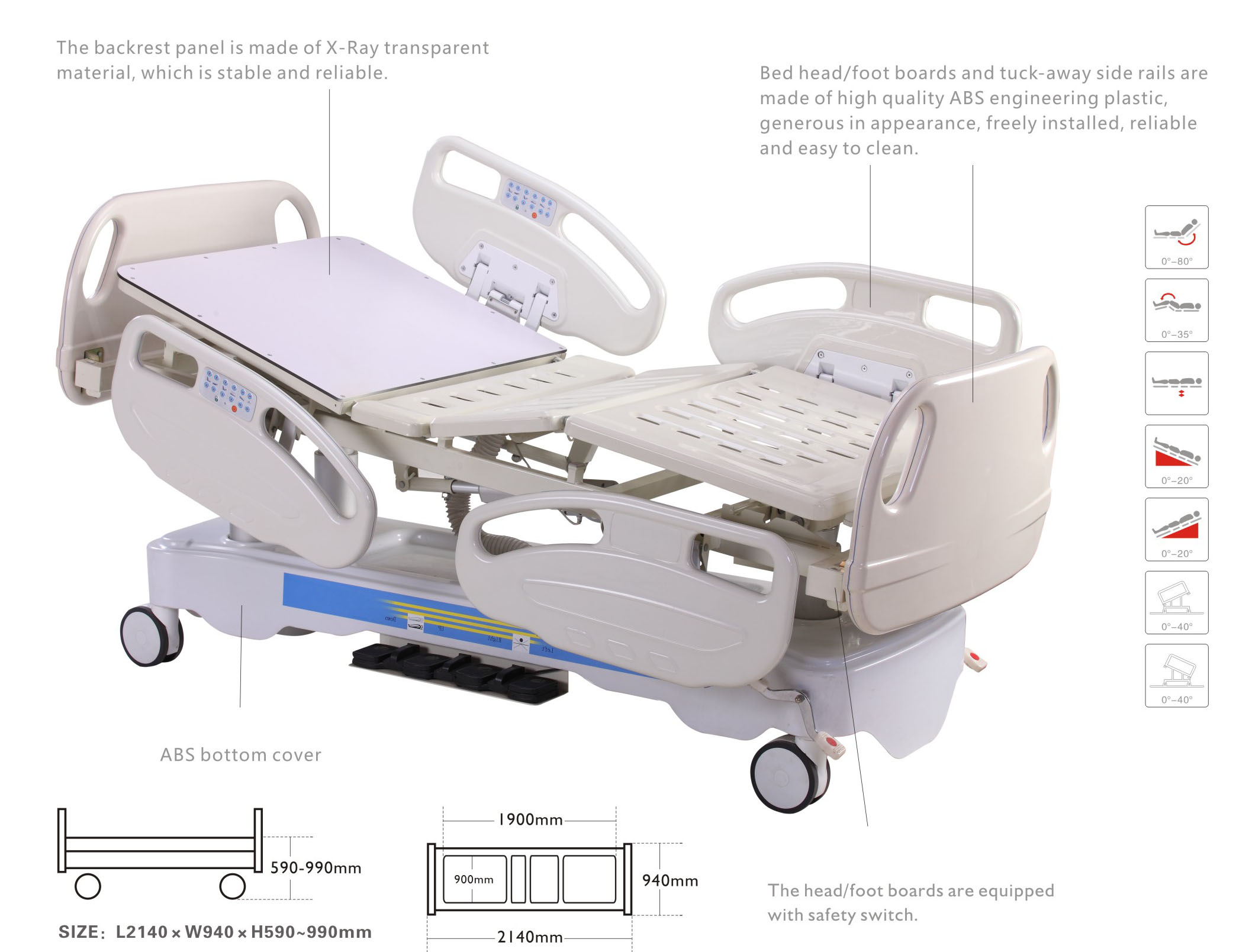

Multi Function Electric Bed

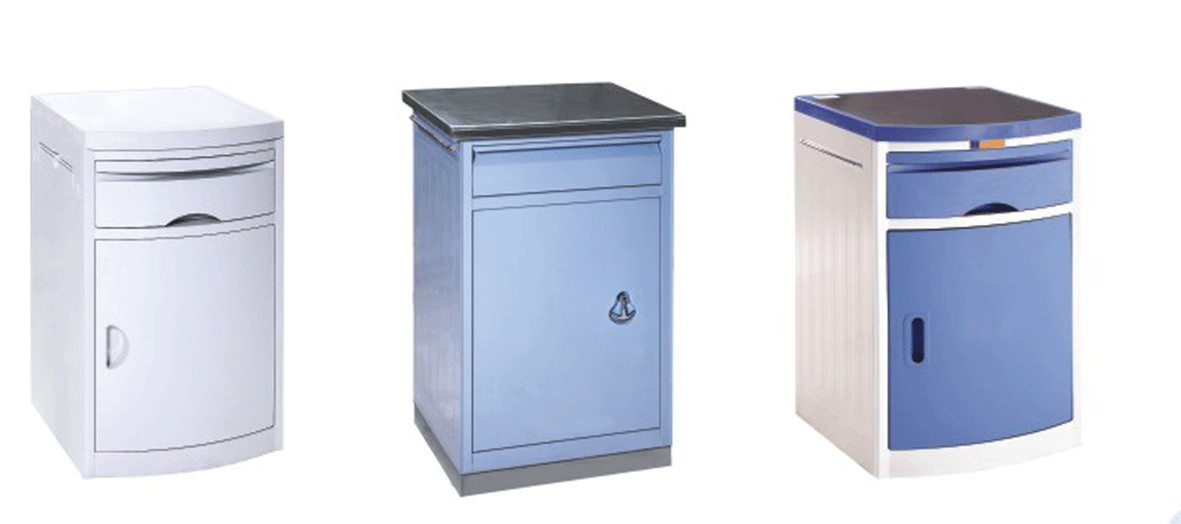

ABS Cupboard

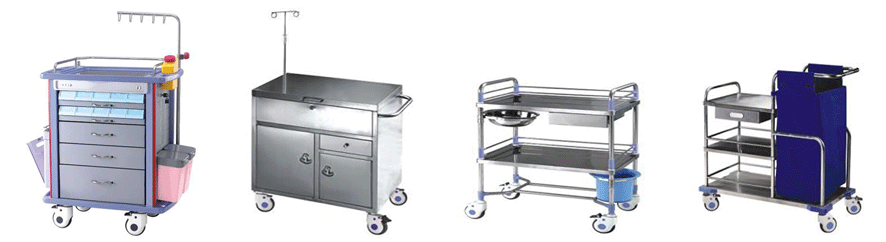

Trolley

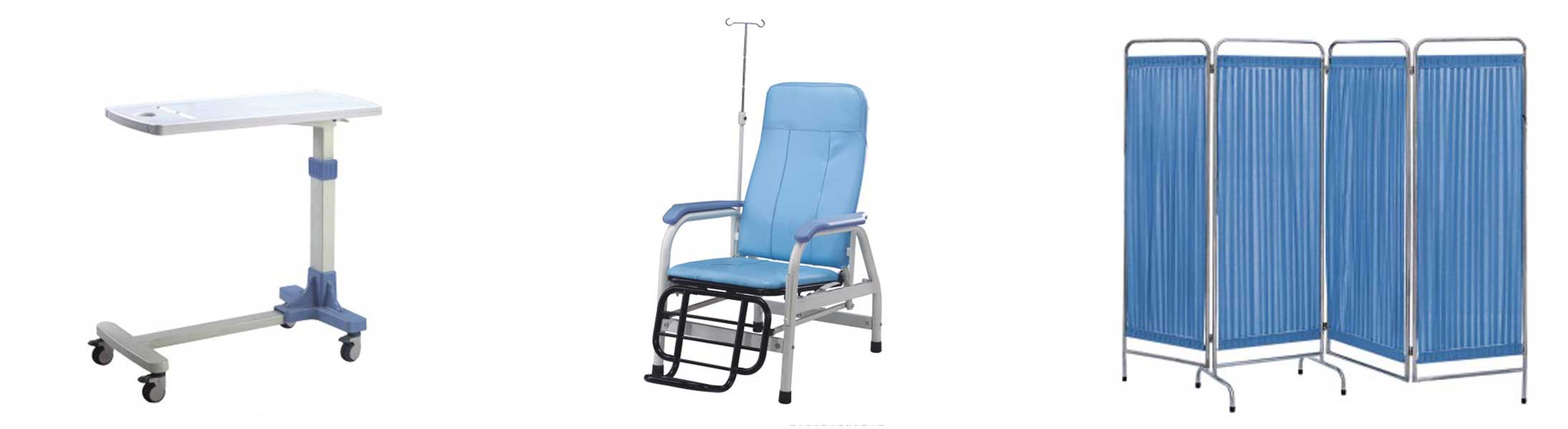

Others
