TIME ROLLING · PHARMACEUTICAL MACHINERY
Automatic Capping & Labeling Machines
Prepare, close, label and seal pharmaceutical bottles with coordinated packaging equipment. Time Rolling supplies bottle unscramblers, capping machines, desiccant and cotton inserters, labelers and induction foil sealers for a range of container formats.
- Bottle packaging
- 6 equipment types
- Container formats
- Round & shaped bottles
- Technical comparison
- Model-by-model data

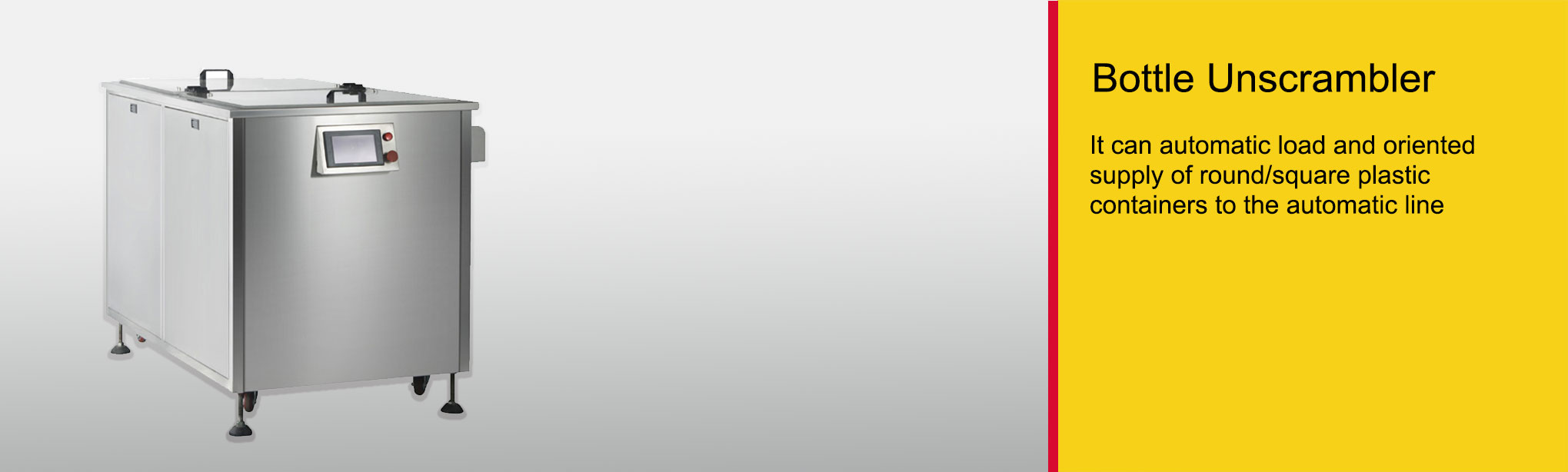

Bottle unscrambler
The TRBU-120 loads and orients round or square plastic containers for an automatic packaging line. Its enclosed hopper and disc sorter feed upright bottles to the conveyor.
- Sensor-controlled bottle discharge and alignment.
- Rejection of bottles with downward-facing openings.
- Compact, enclosed design for low-noise operation.
| Model | TRBU-120 |
|---|---|
| Max. capacity | Max. 150 bottles/minute |
| Size of Bottle | 15-300 ml |
| Voltage | AC 220V , single phase, 50 Hz |
| Power | 1 kW |
| Overall Dimension | 1100 (L)x2000(W)x1230(H) mm |
| Weight | 250 kg |

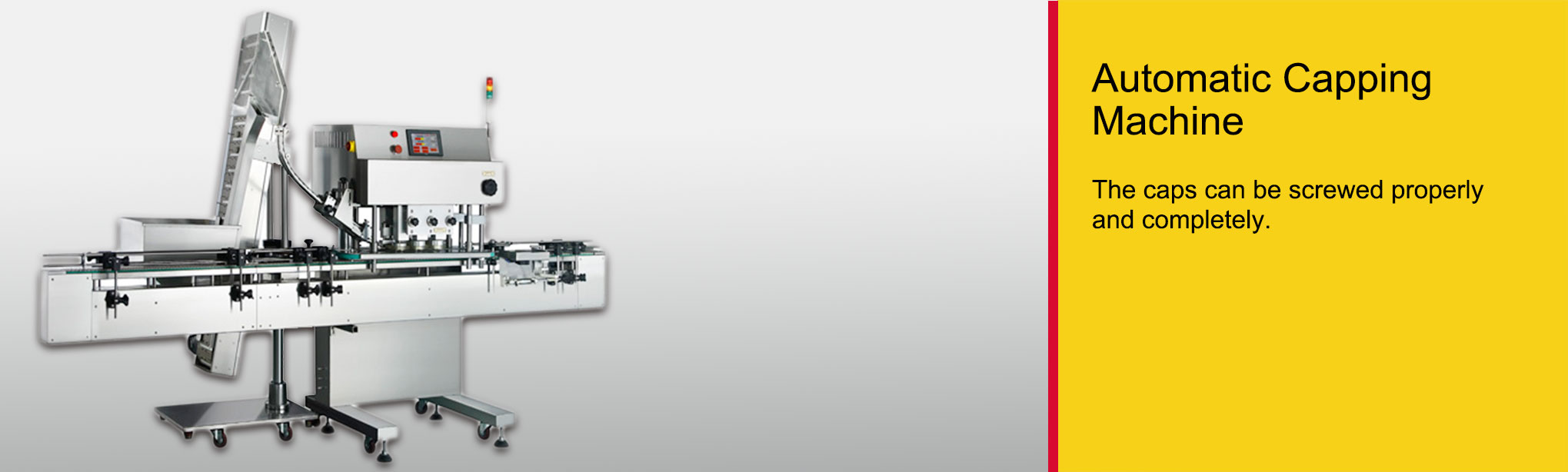

Automatic capping machine
The TRCM-120 applies screw caps to round, rectangular and many irregular containers. Three sets of capping wheels provide adjustable cap tightening, while the floor-level hopper supports continuous cap feeding.
- SUS304 stainless steel frame and housing.
- Digital adjustment knobs on the capping wheels.
- Slip elements on the third wheel set help detect improper tightening.
- Automatic stop for missing or congested bottles; rejection of uncapped or incorrectly capped bottles.
| Model | TRCM-120 |
|---|---|
| Max. capacity | Max. 120 bottles/minute |
| Size of Cap | Dia. 15-70 mm |
| Size of Bottle | 15-500 ml |
| Voltage | AC 220V , single phase, 50 Hz |
| Power | 850 W |
| Overall Dimension | 2385 (L)x700(W)x1950(H) mm |
| Weight | 440kg (with conveyor) |

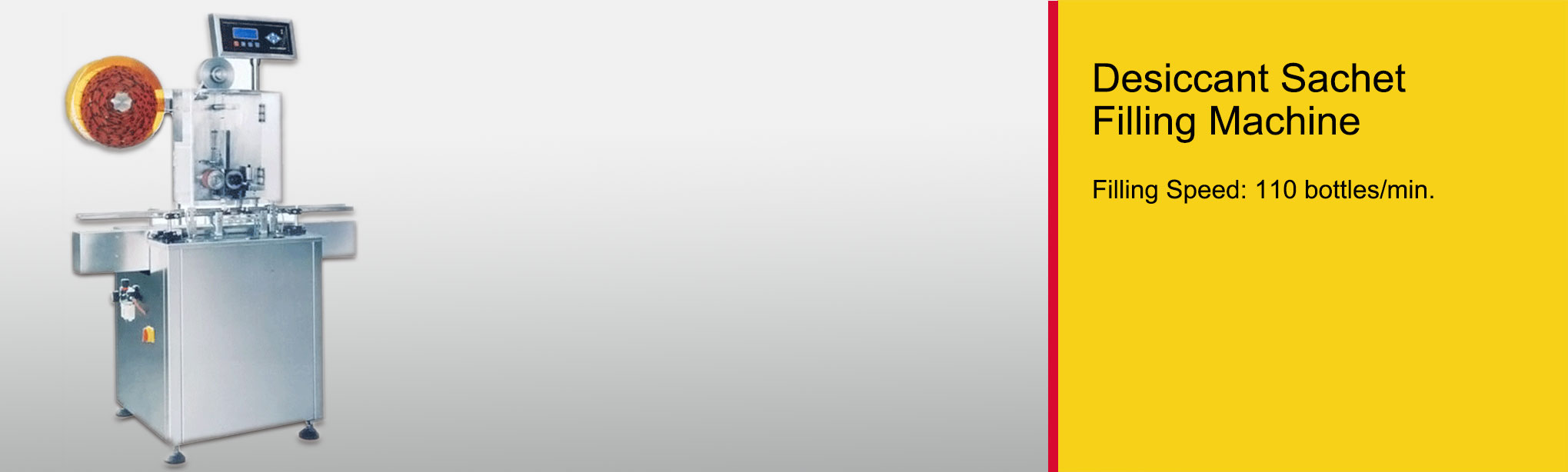

Desiccant sachet filling machine
The TRSF 120 inserts individual desiccant sachets into tablet or capsule containers to help control moisture. A sensor-equipped feed system guides a continuous sachet ribbon to a two-blade cutting mechanism.
- Cuts and inserts individual sachets from a ribbon.
- Stops automatically when bottles are missing or blocked on the conveyor.
- Designed for pharmaceutical packaging and GMP production requirements.
| Model | TRSF 120 |
|---|---|
| Capacity | Max. 110 bottles/minunte |
| Size of Container | 15-300 ml |
| Voltage | AC 220V, 50 Hz |
| Power | 0.35 kW |
| Air Consumption | 0.18 m3/h |
| Overall Dimension | 1100 mmx500 mmx1500 mm |
| Weight | 200 kg |

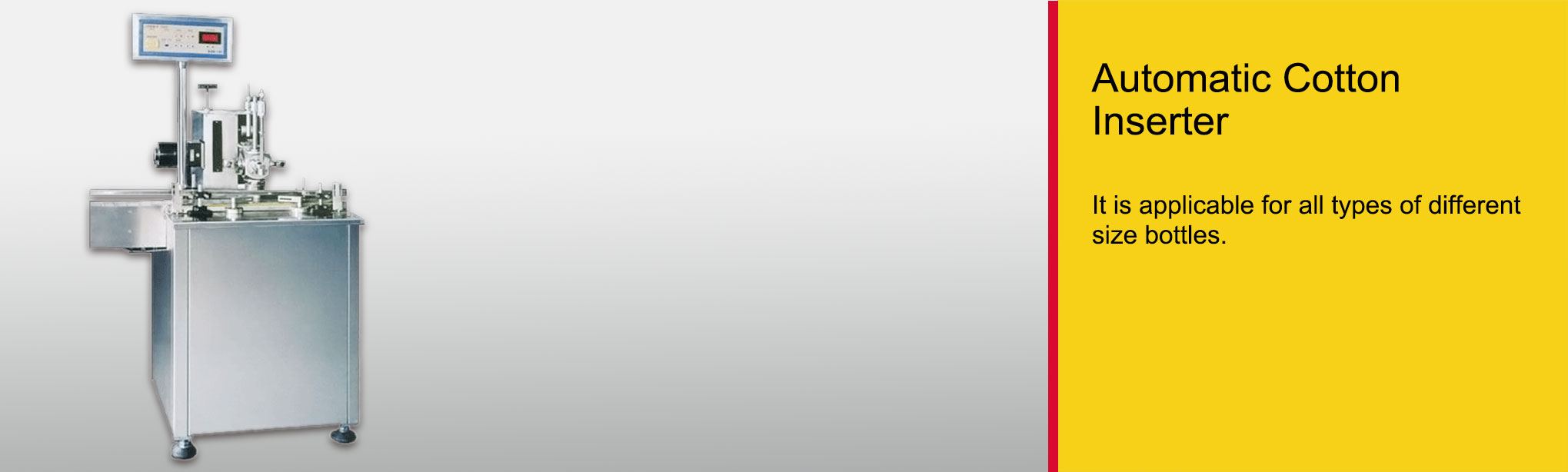

Automatic cotton inserter
The TRCI 120 inserts cotton into different bottle formats without replacing format parts. It is designed for pharmaceutical bottling operations and GMP production requirements.
- Accommodates different bottle types and sizes within the specified range.
- Automatic stop when bottles are absent or the conveyor is blocked.
| Model | TRCI 120 |
|---|---|
| Capacity | Max. 70 Bottles/minute |
| Size of Container | 40-250 ml |
| Voltage | AC 220V, 50 Hz |
| Power | 0.35 kW |
| Overall Dimension | 1100 mmx850 mmx1500 mm |
| Weight | 230 kg |

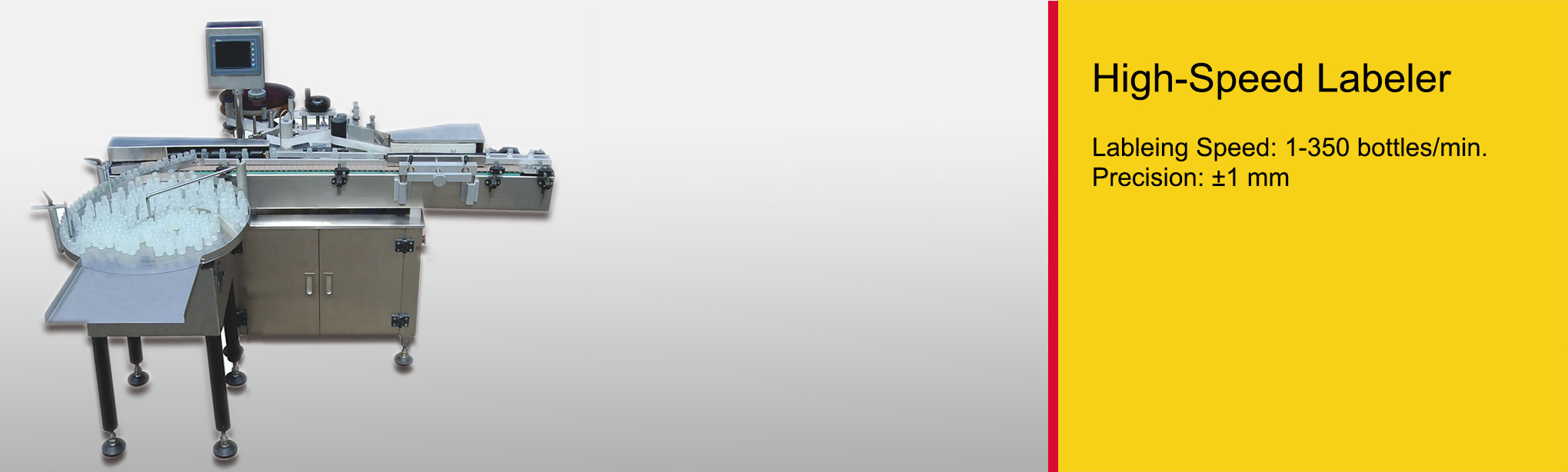

High-speed bottle labeler
This automatic labeling system uses PLC control to adjust operating parameters when labels or bottles change. The adjustment system reduces manual parameter setting and sensor repositioning.
- Labeling speed: 0–350 bottles per minute.
- Specified labeling precision: ±1 mm.
- Standard sponge-wheel bottle distribution; optional screw distribution.
| Name | High Speed Labeler |
|---|---|
| Labeling Speed | 0~350 bottles/minute |
| Precision | ±1 mm |
| Inner Diameter Roll | φ75 mm |
| Outer Diameter Roll | φ300 mm |
| Products Diameter | φ15 mm~φ100 mm |
| Label Width | 30 mm~70 mm |
| Label Length | 15 mm~250 mm |
| Conveyor Direction | L→R/R→L |
| The Width of the Conveyor Belt | 100 mm |
| The Way of The Distribution of The Bottle | Sponge Round(Standard) Screw(Option) |
| Electrical Requirements | 220 V 50 Hz |
| Power | 700 W |
| Dimension | 2000 mm×910 mm×1665 mm |
| Weight | 230 kg |

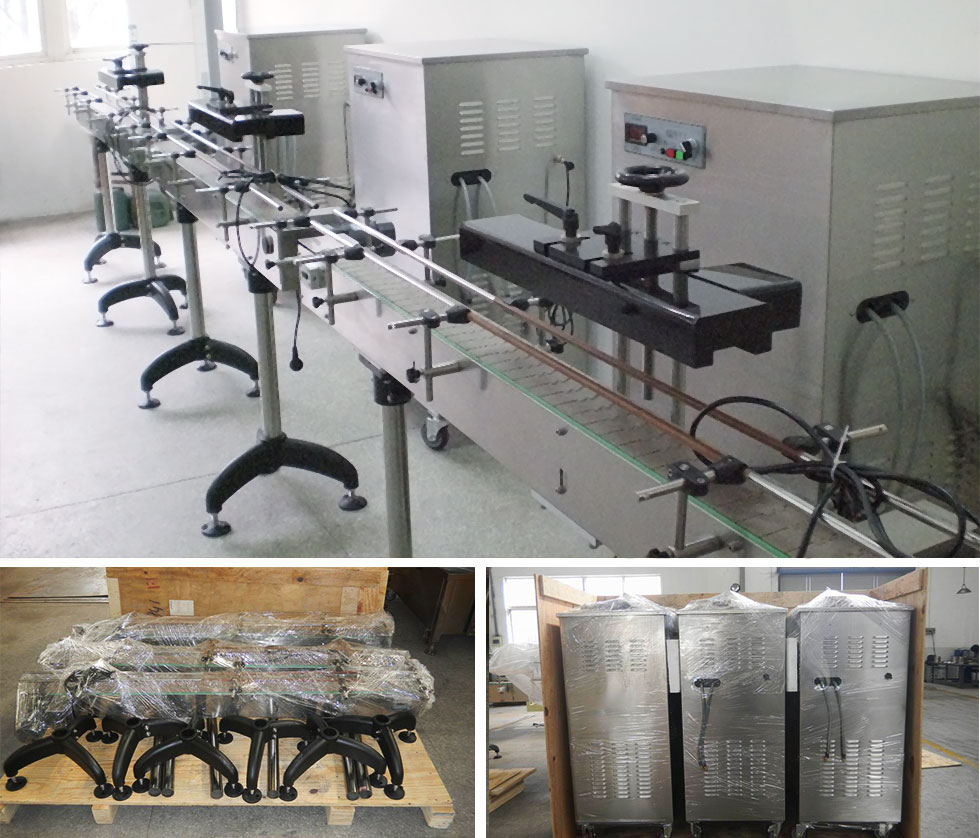

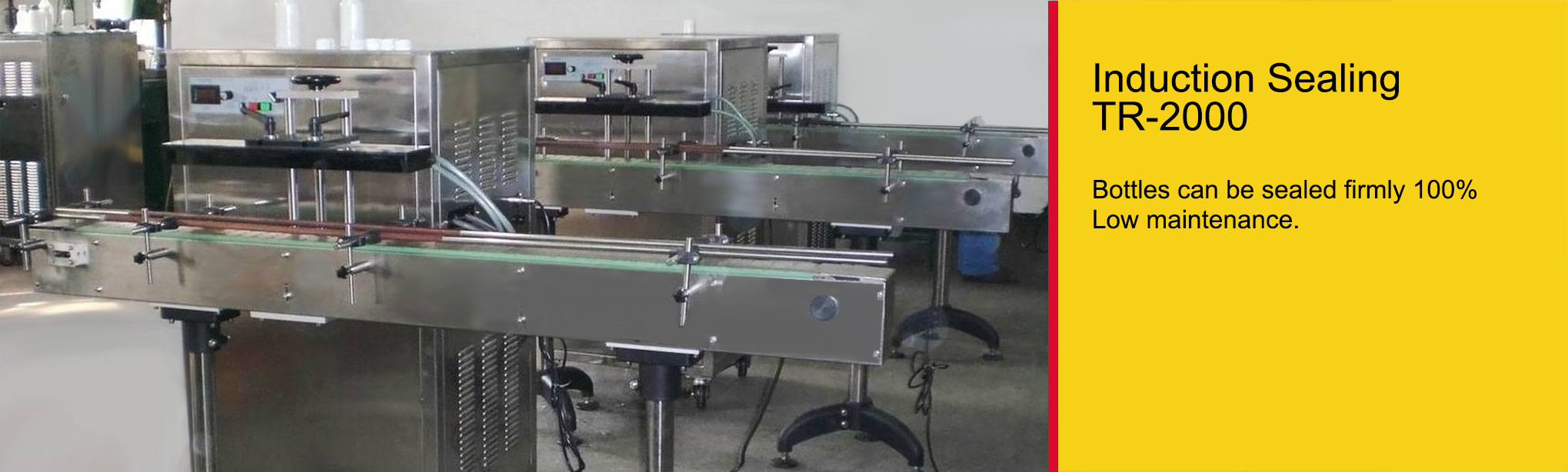

Induction aluminum foil sealer
The TR-2000 uses a high-frequency electromagnetic field to heat the foil liner and bond its sealing film to the bottle mouth. This non-contact process is suitable for PE, PP, PET, PS, ABS and glass containers.
- Used for pharmaceutical, food, cosmetic and chemical packaging.
- Foil sealing helps protect the contents from moisture and provides a tamper-evident closure.
- Water-circulation cooling; sealing speed depends on bottle diameter.
| Model | TR-2000 |
|---|---|
| Sealing Diameter | 20-75 mm |
| Speed | 0-200 bottles/minute (Depending on the diameter of the bottle) |
| Electrical Requirements | 220 V 50 Hz |
| Power | 2.5 KW |
| Output Power | 80 kW |
| Weight | Sealer: 5kg, Conveyor: 40kg |
| Dimension | Sealer: 815x900x1,217 mm Conveyor: 1,800x445x835 mm |
| Cooling System | Circulating Water |
