Sachet Packaging Machines

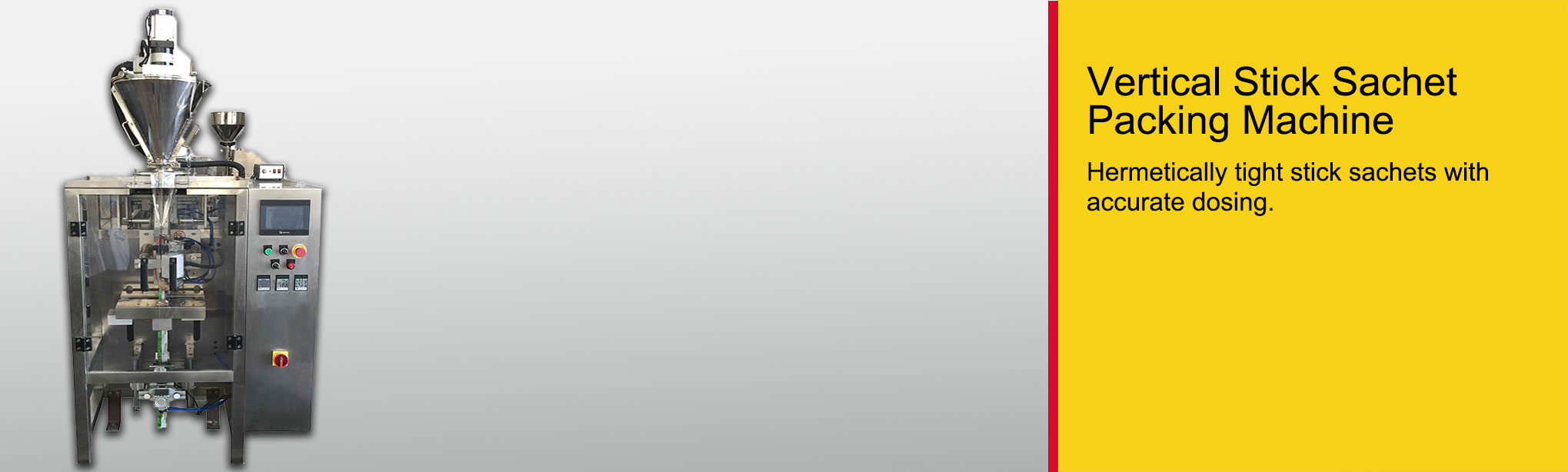

The vertical packaging machine combines measuring, product loading, bag making and date printing for stick sachets or pouches. Applications include pharmaceutical, chemical, food and cosmetic packaging.

• PLC and pneumatic control with a touchscreen interface.
• SS316L product-contact parts.
• Packaging design intended to reduce material loss.
• Designed for GMP production requirements.

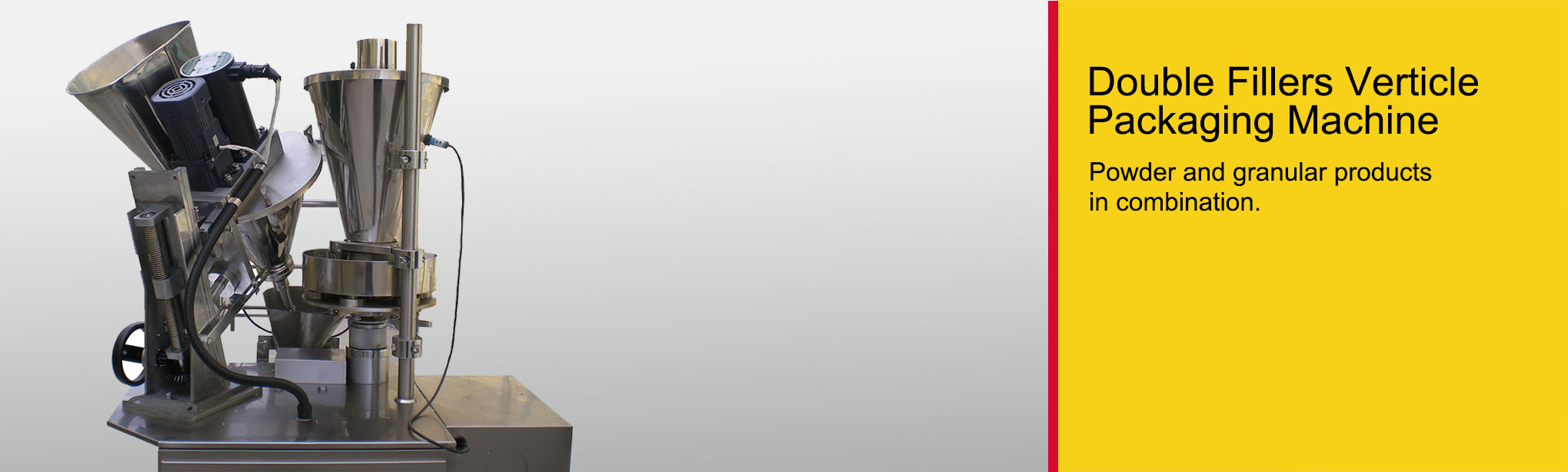

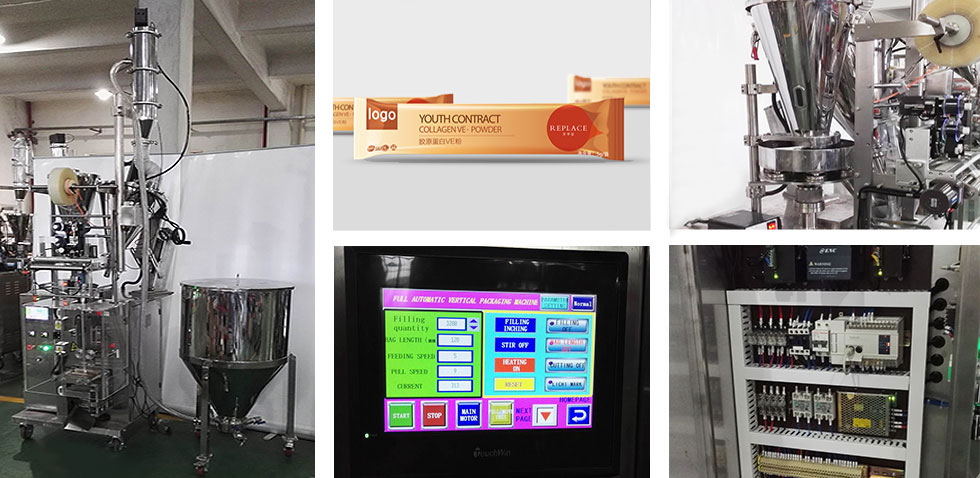

Two filling systems extend the range of powders and granules handled by one machine. The auger filler serves standard and non-free-flowing powders, while the volumetric filler handles free-flowing powders and granules.

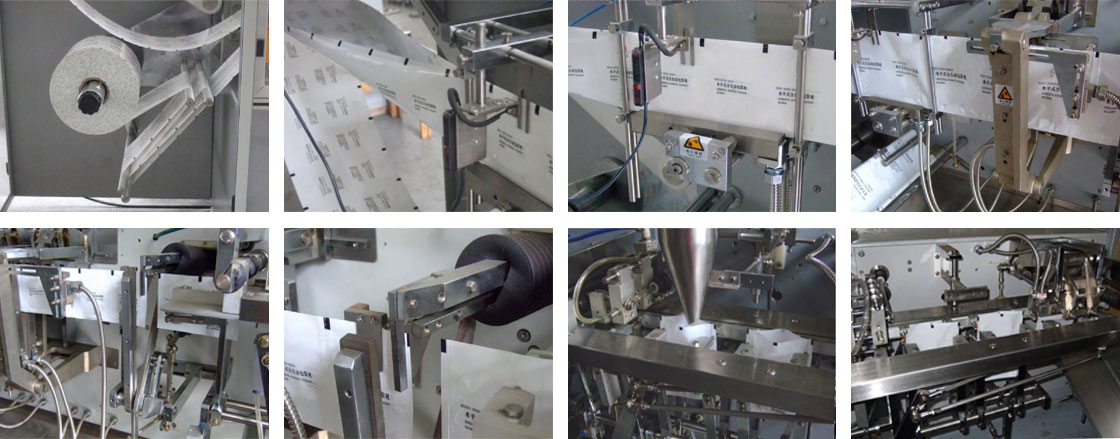

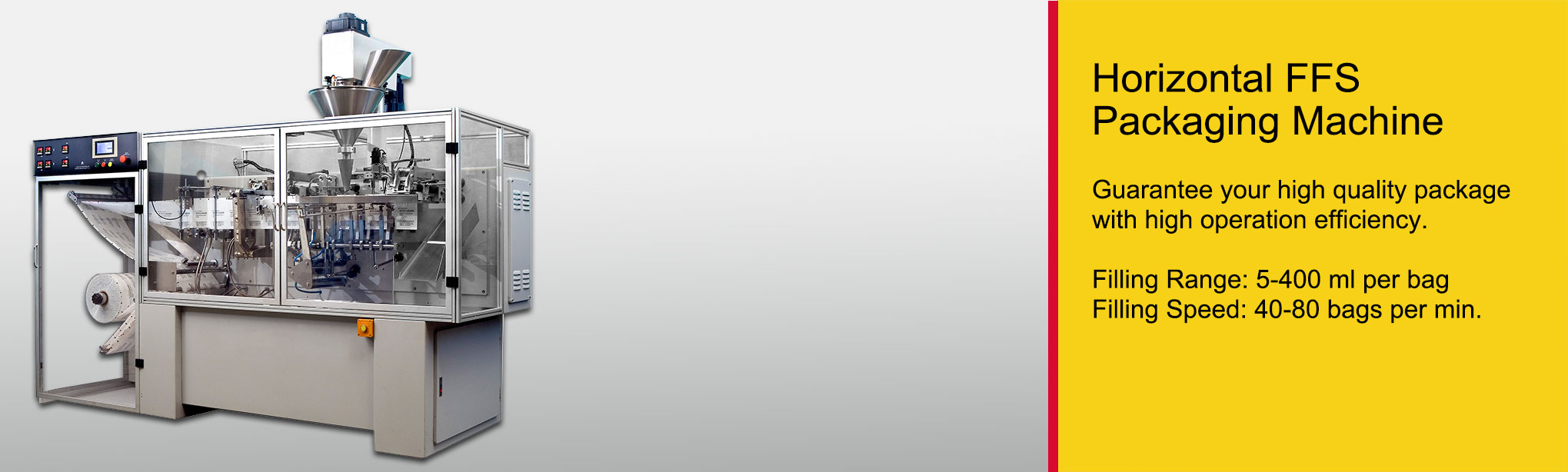

The horizontal FFS machine forms, cuts, fills and seals sachets from multilayer heat-sealable films. It supports three-side and four-side sealing, with auger adjustment of the filling volume.

• No-bag, no-fill function.
• Automatic stop after three unfilled packs.
• Alarms for exhausted or broken packaging film.
• Mechanical-fault monitoring, hopper-level sensing and a safety-door switch.

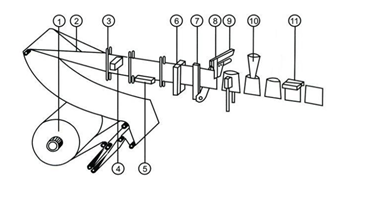

1. Film feeding

   Material reel → V-forming section → folding guides → optical sensor.

2. Sachet forming

   Bottom sealing → vertical sealing → cutting with scissors.

3. Opening & filling

   Pulling fingers → sachet opener → filling funnel.

4. Final sealing

   Top sealing completes the sachet.

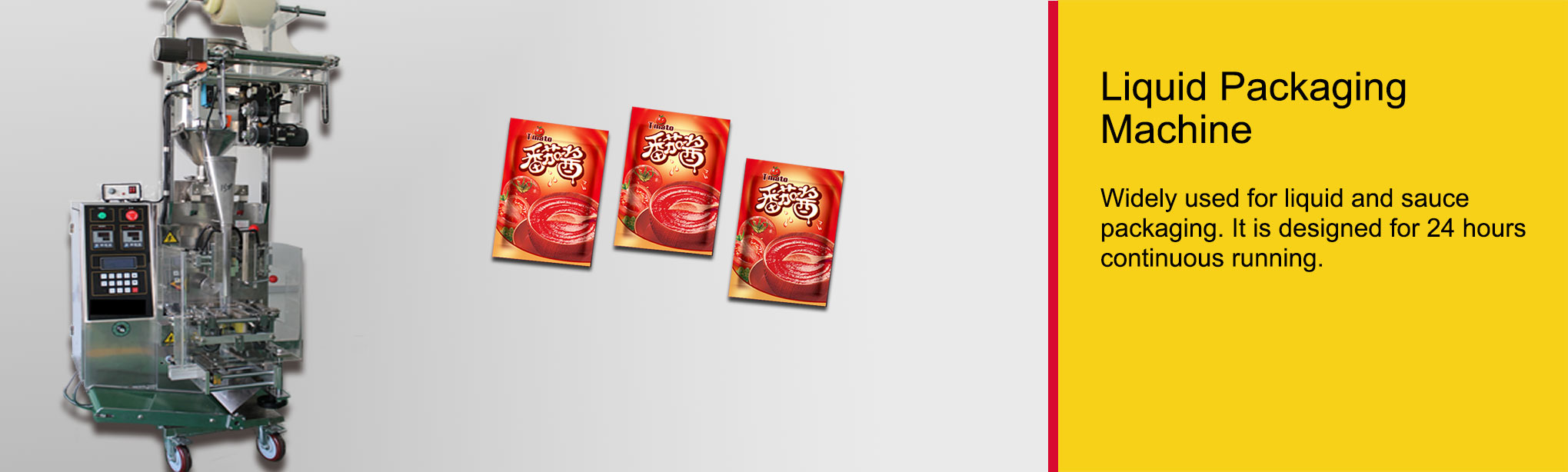

The touchscreen-controlled liquid sachet machine produces four-side-sealed packs. It is designed for continuous operation in pharmaceutical, cosmetic and food applications.

• Suitable applications include honey, ketchup, chili sauce and instant-noodle sauce.
• Also handles creams, shampoo and bath gel.
• Specified filling range: 1–100 ml; speed: 40–60 bags per minute.
