Opposed-impeller multistage arrangement

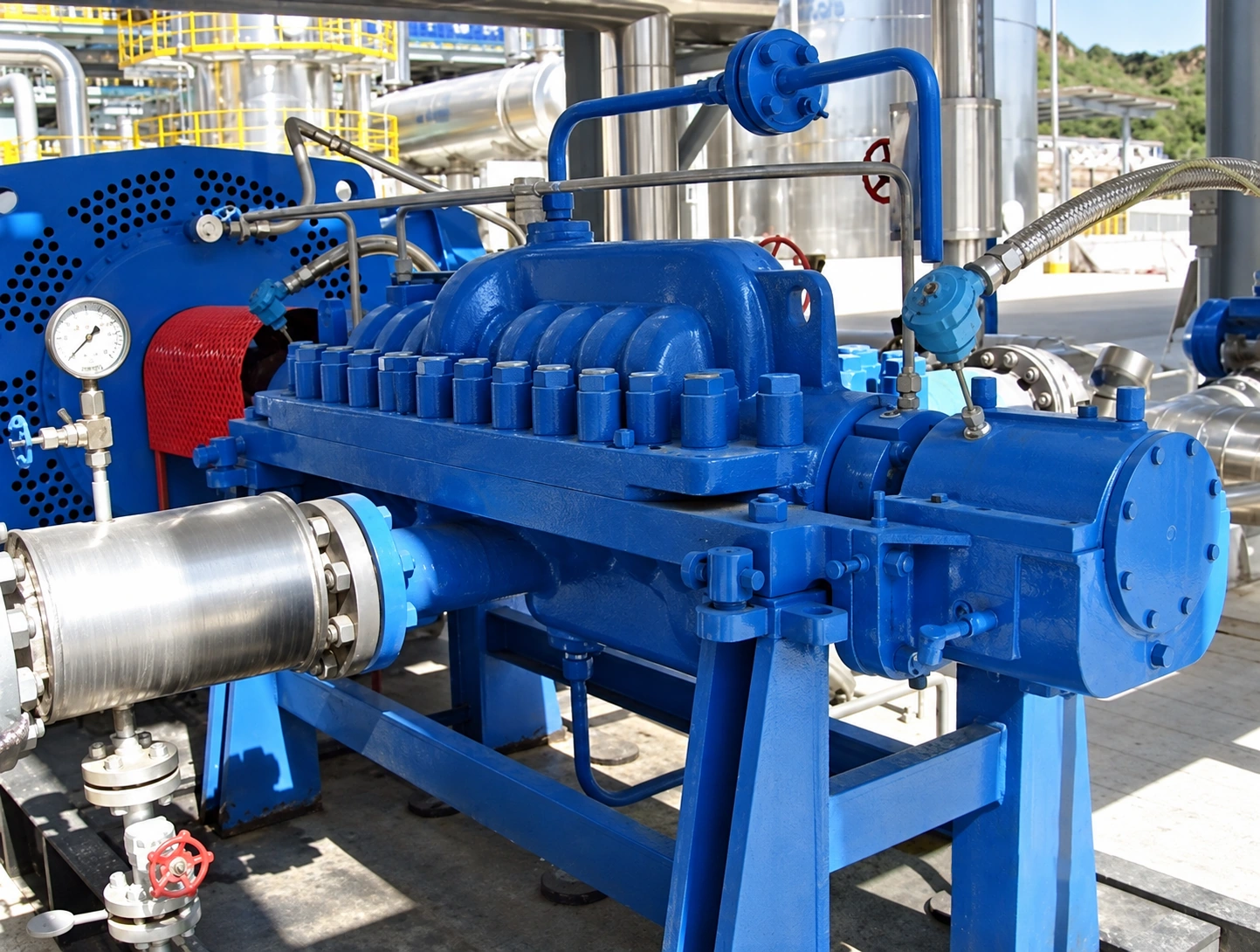

The horizontal pump uses an axially split, centerline-mounted volute and an opposed-impeller arrangement.
BETWEEN BEARINGS / AXIALLY SPLIT
API 610 BB3 Axially Split Multistage Pumps
Time Rolling offers horizontal, axially split BB3 multistage pumps with a centerline-mounted volute and opposed impellers.
CONSTRUCTION
BB3 construction and maintenance access
Removable upper casing
Removing the upper casing cover allows the complete rotor assembly to be lifted out.
BB3 FAMILY RANGE
Operating envelope
- Pressure
- 25 MPa max.
- Flow
- 0–2000 m³/h
- Head
- 0–2500 m
- Temperature
- 200 °C max.
Materials, sealing arrangements, inspection and testing requirements, and any required API 610 compliance are agreed during technical review for the selected pump.

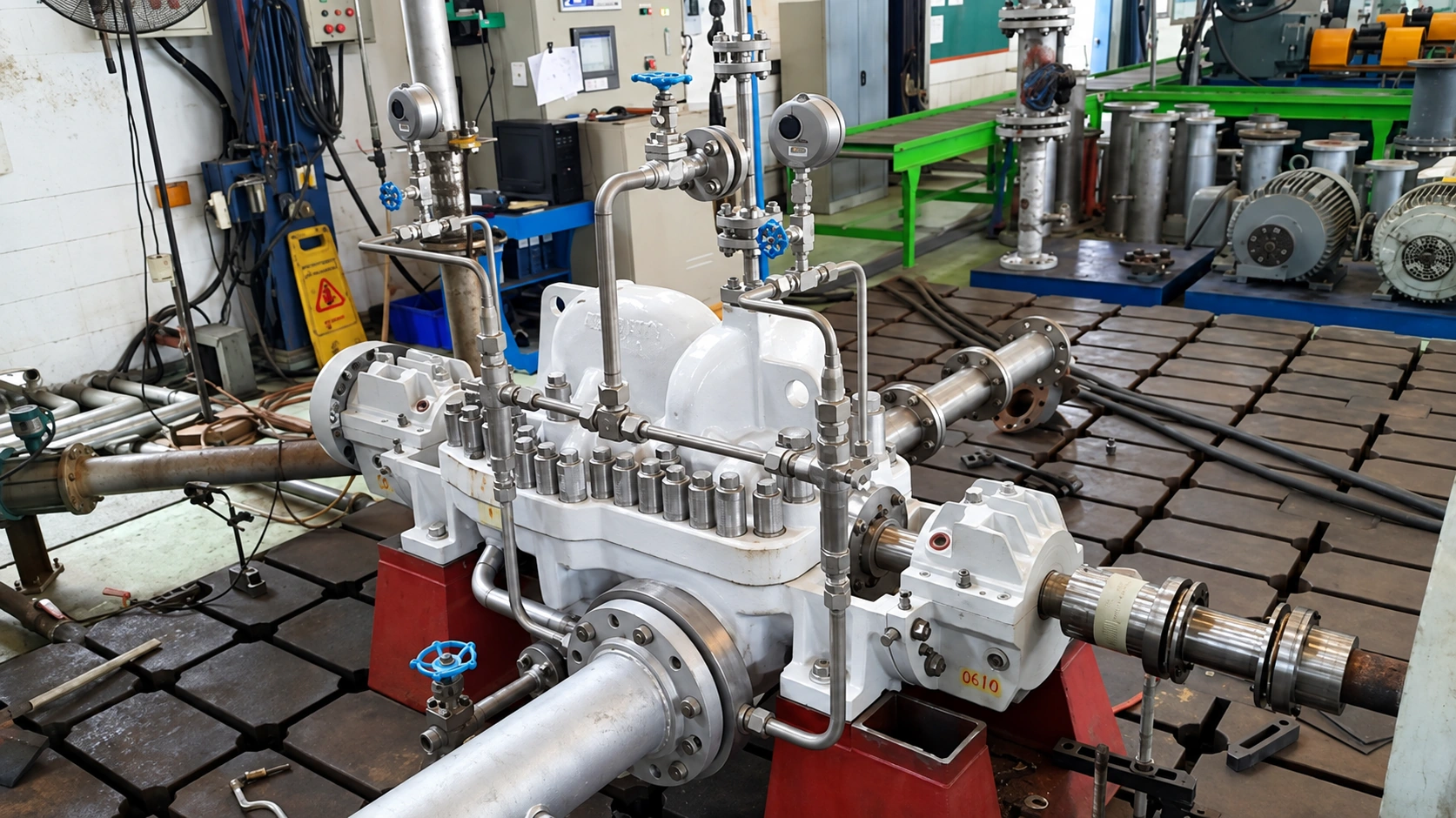

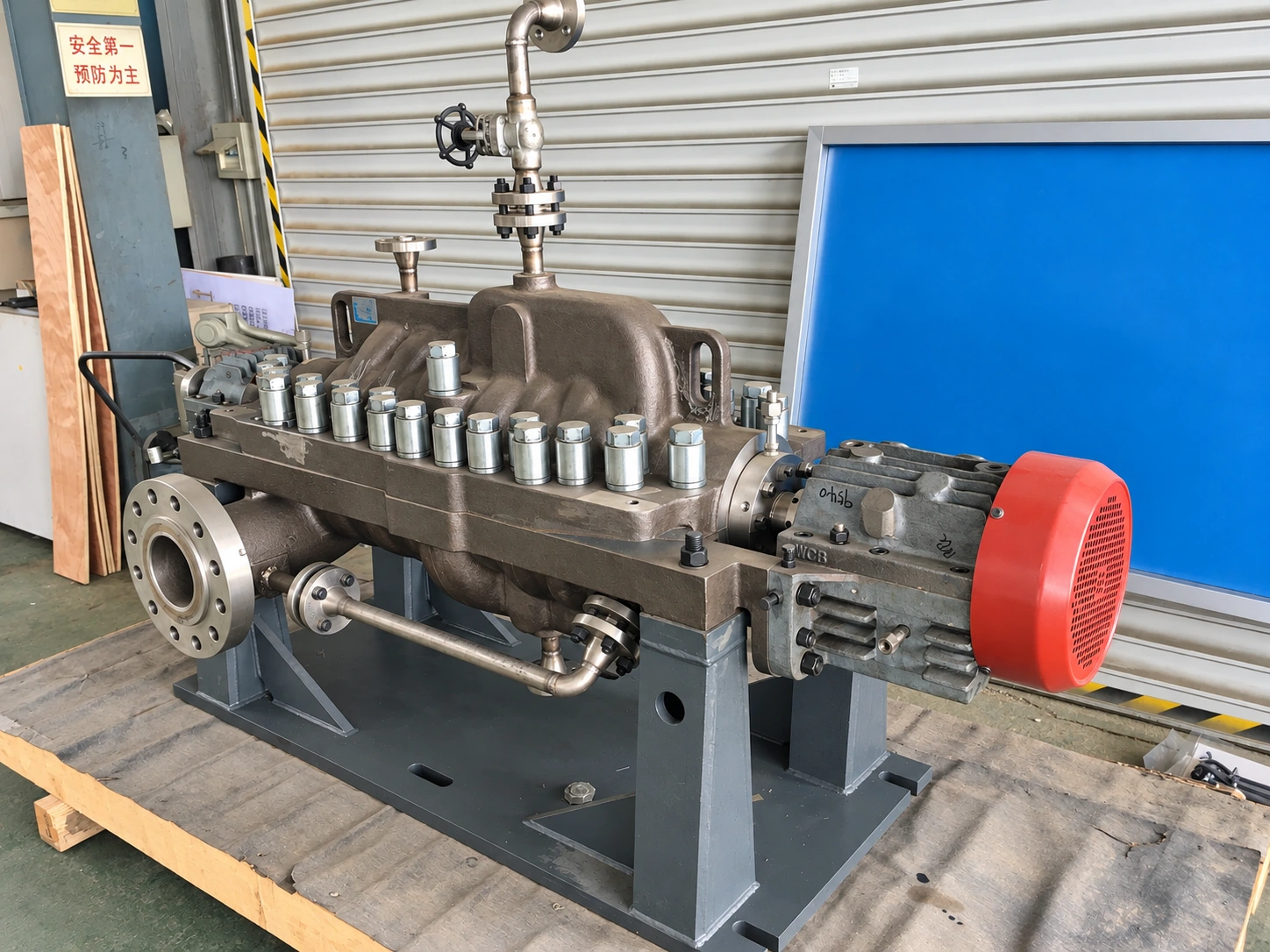

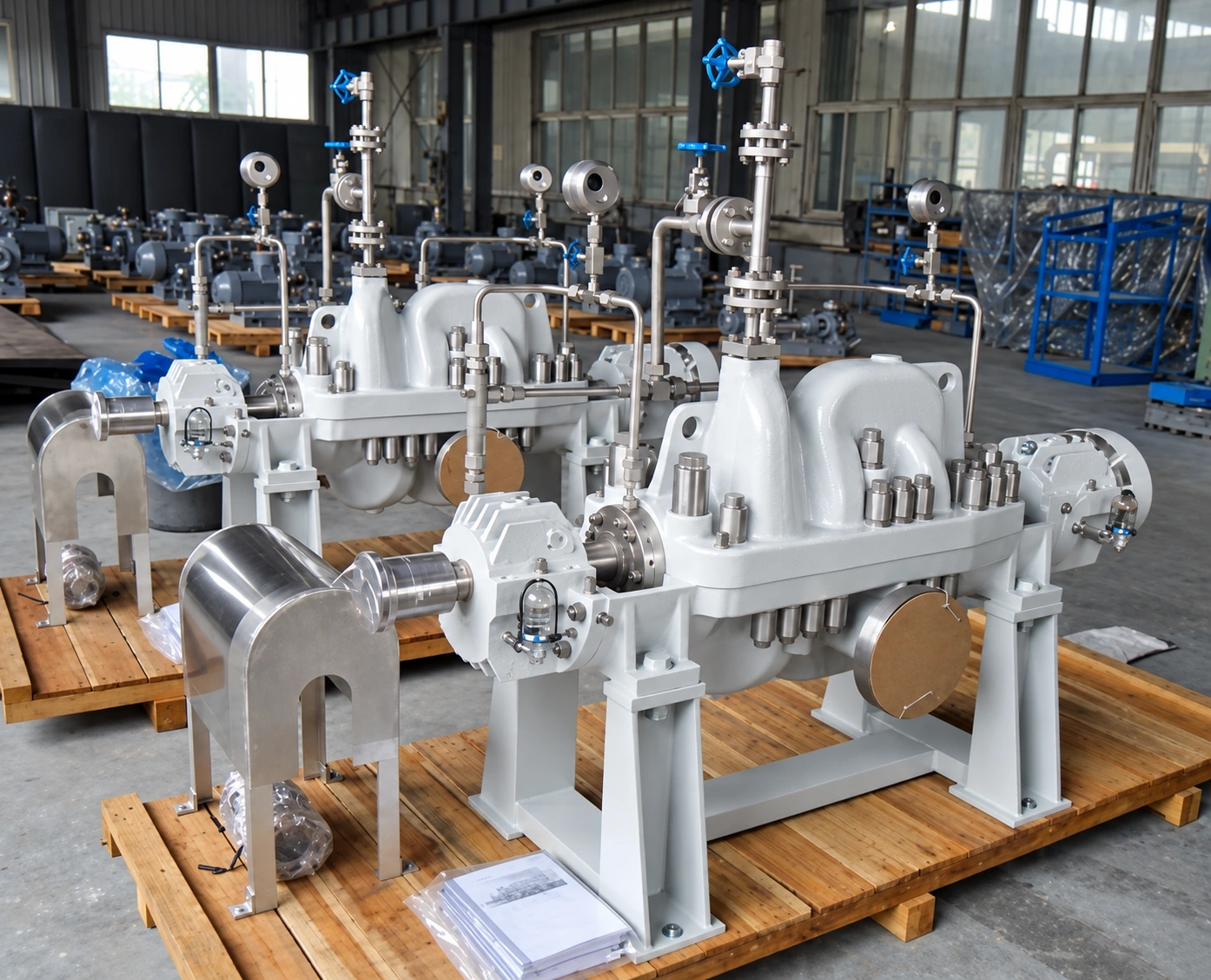

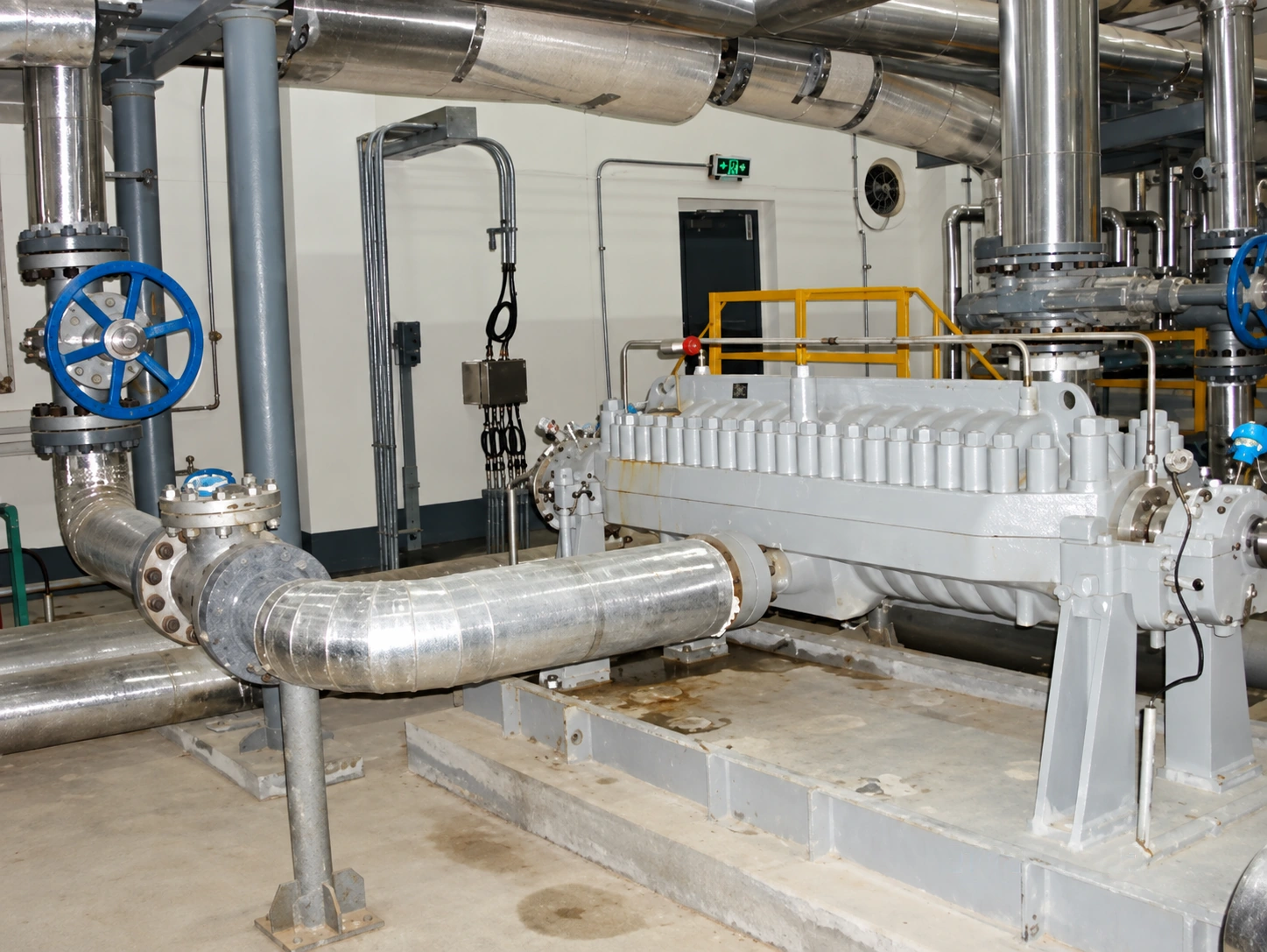

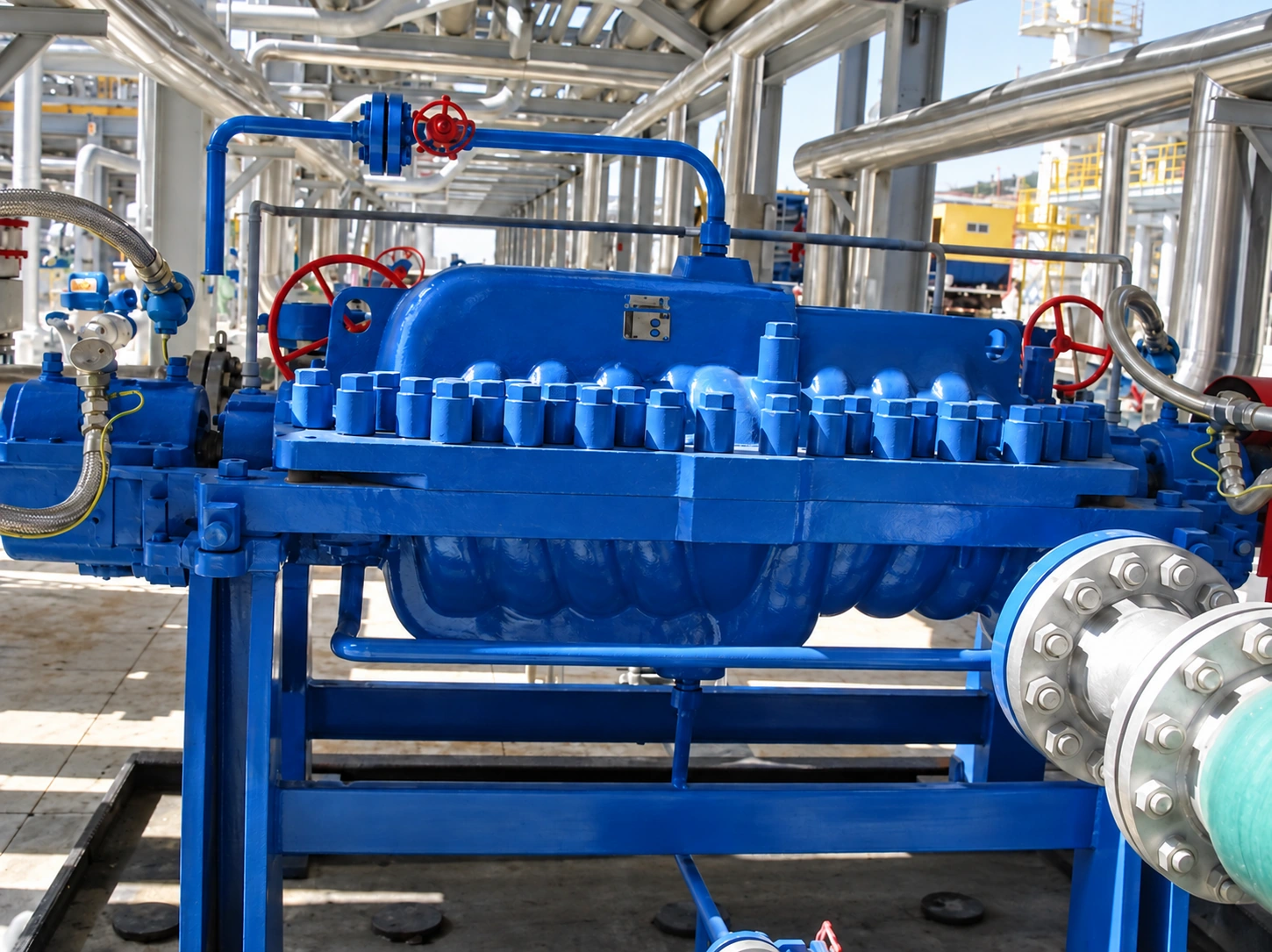

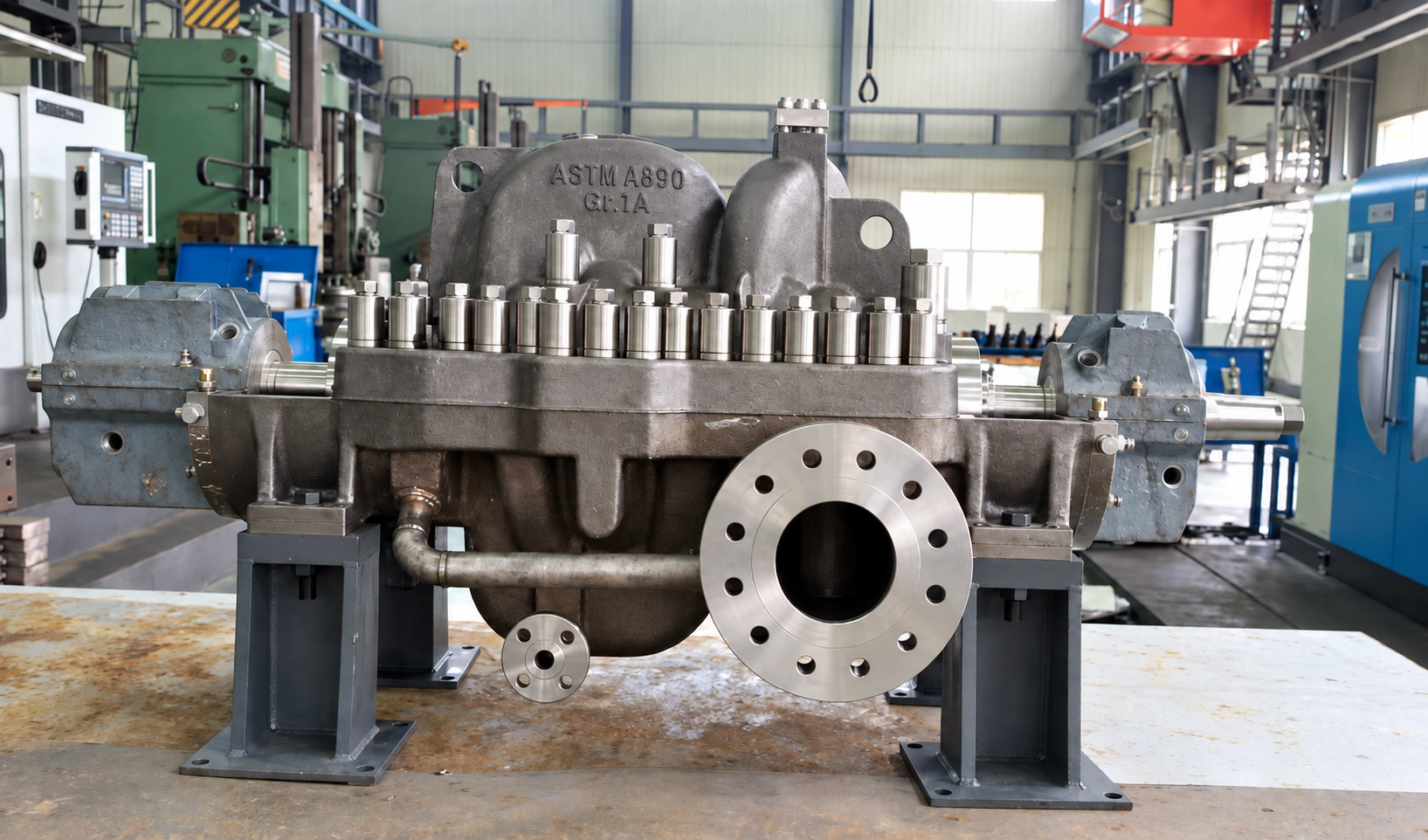

Pump assemblies and details
6 real photographs
More about our pump and parts
- BB3 pumps are used where straightforward disassembly is required.
- The upper casing can be removed to provide access to the complete rotor assembly.
