Horizontal multistage arrangement
The pump uses a horizontal, radially split multistage construction.
BETWEEN BEARINGS / BARREL CASING

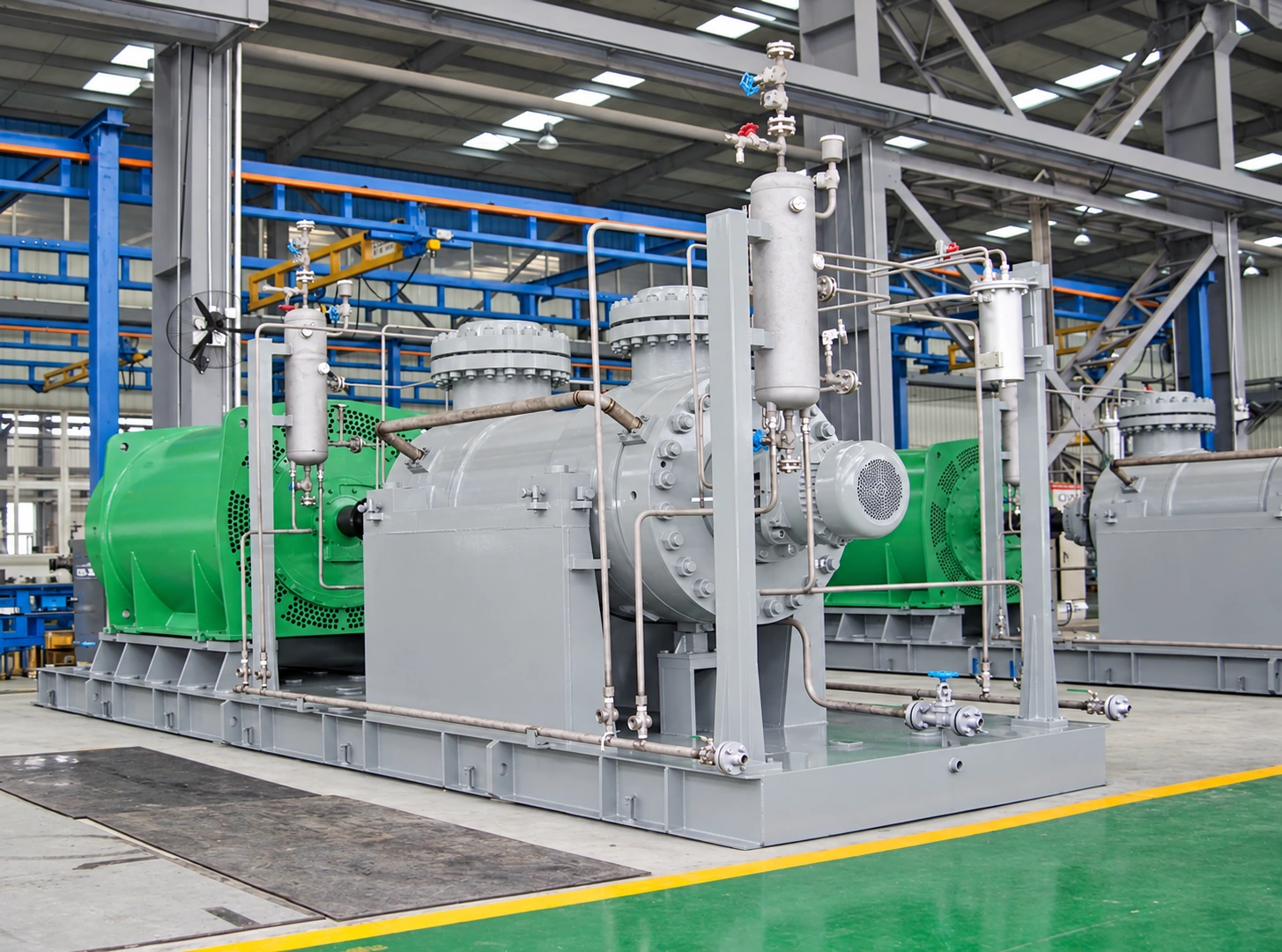

API 610 BB5 Multistage Barrel Pumps
Time Rolling offers horizontal, radially split BB5 multistage barrel pumps for high-pressure and/or high-temperature conditions.
CONSTRUCTION
BB5 construction and operating conditions
Additional outer casing
Based on the BB4 arrangement, the BB5 design adds a barrel casing for high-pressure and/or high-temperature conditions.
BB5 FAMILY RANGE
Operating envelope
- Pressure
- 32 MPa max.
- Flow
- ～800 m³/h
- Head
- ～2500 m
- Temperature
- 450 °C max.
Materials, sealing arrangements, inspection and testing requirements, and any required API 610 compliance are agreed during technical review for the selected pump.

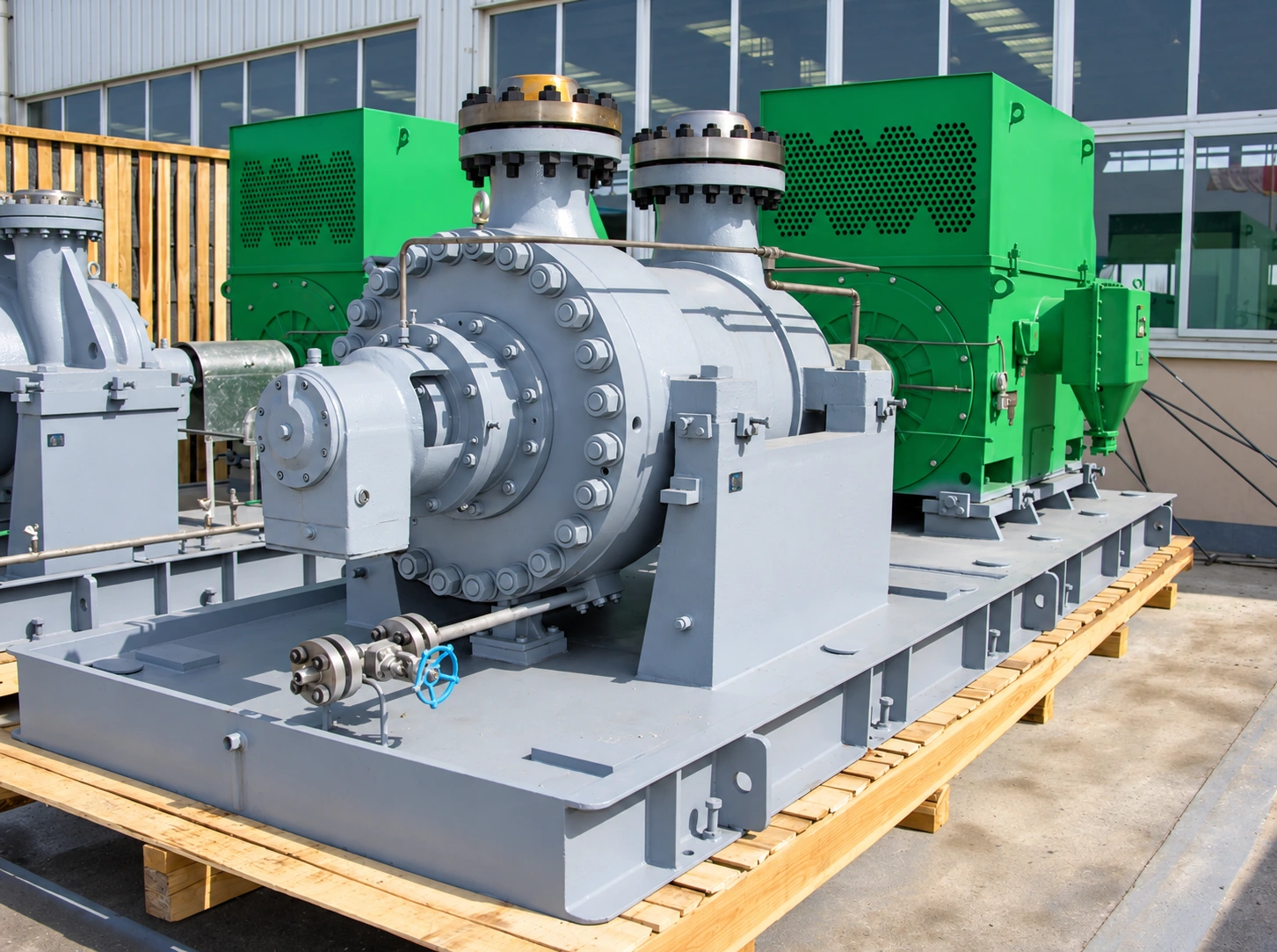

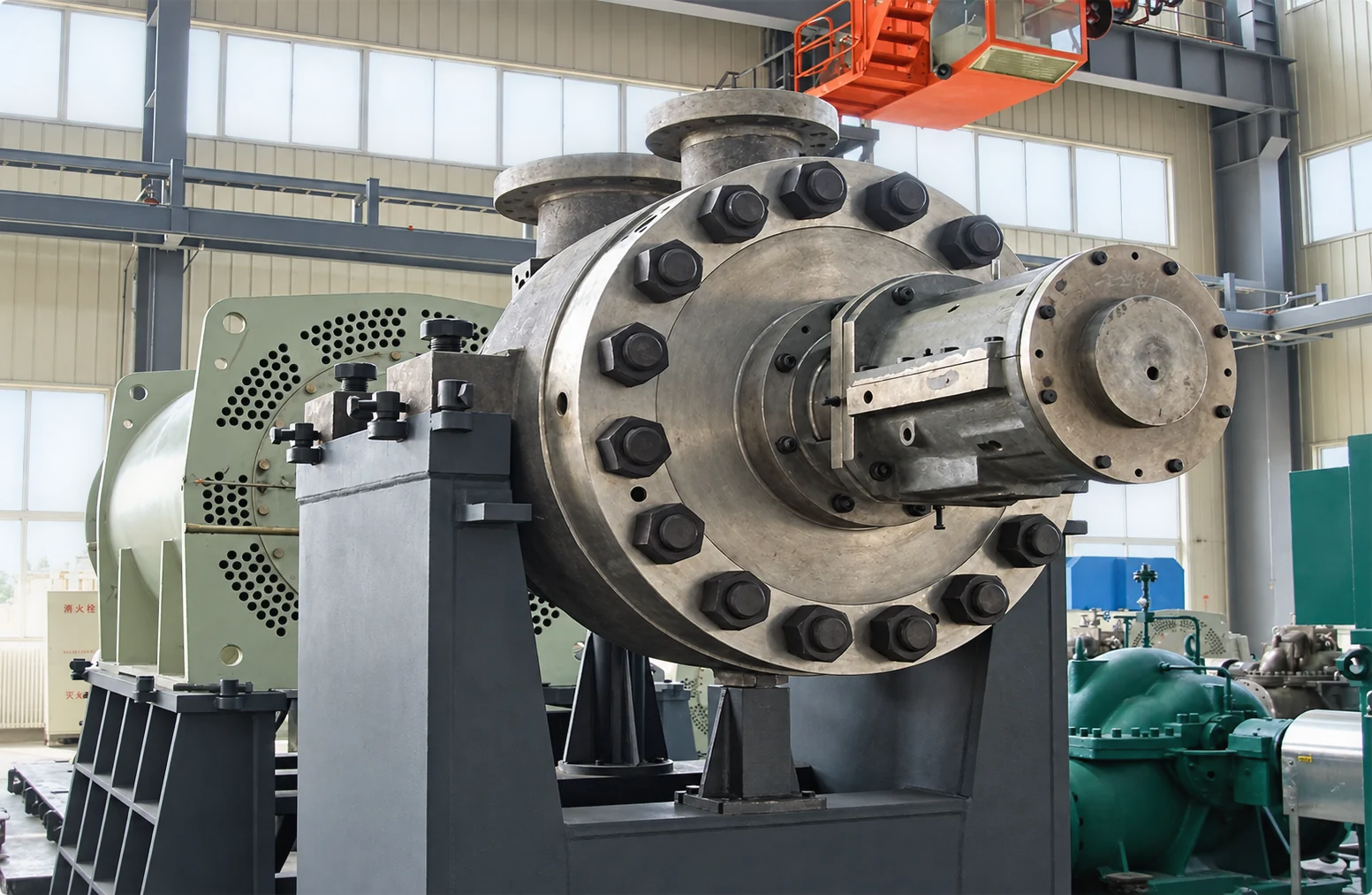

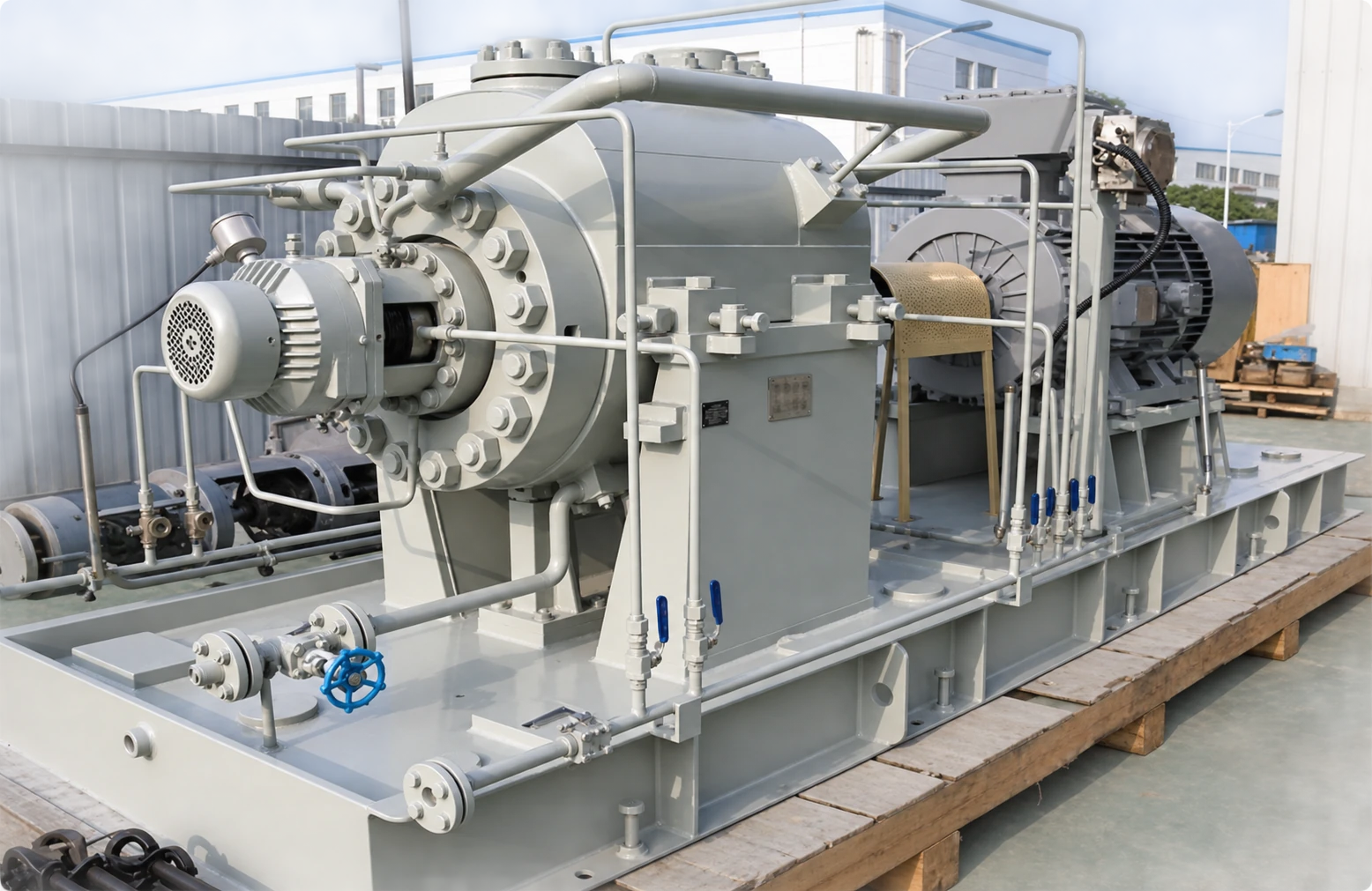

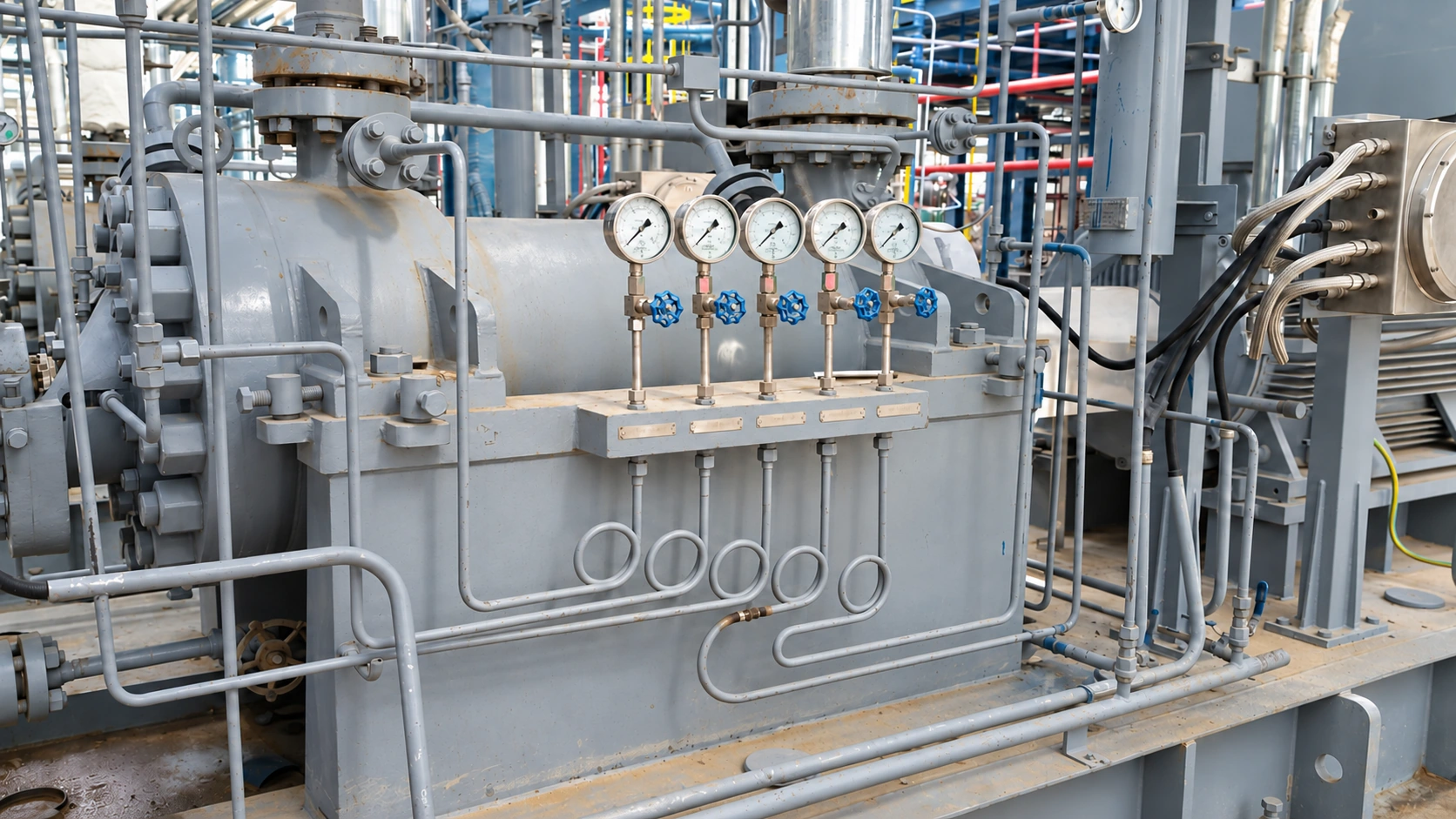

Pump assemblies and details
4 real photographs
More about our pump and parts
- The supply range covers horizontal, radially split BB5 multistage barrel pumps.
- The barrel casing is added to the BB4-based arrangement for high-pressure and/or high-temperature service.
