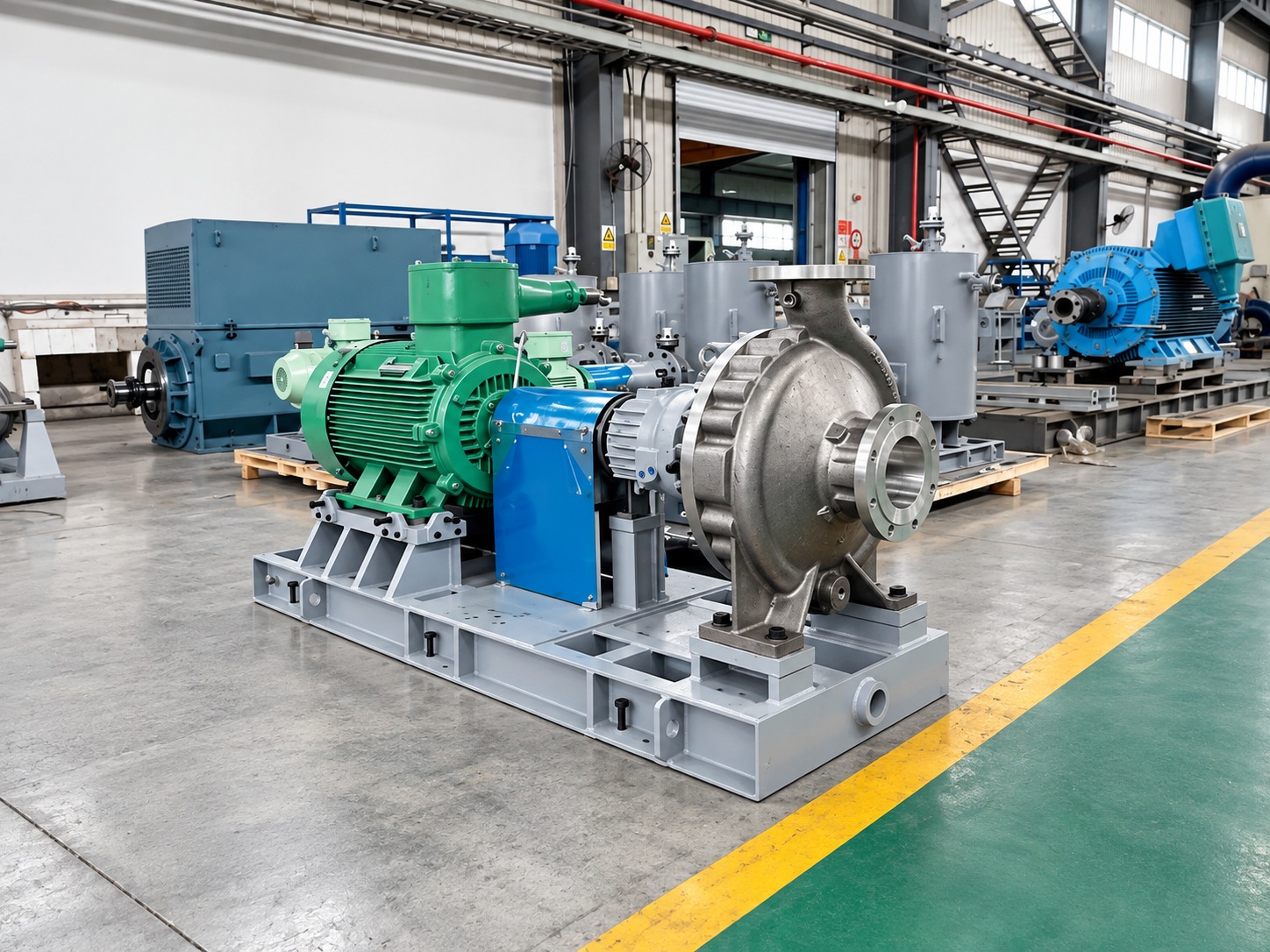

Horizontal pump assembly with a green motor and blue coupling guard.

OVERHUNG / HORIZONTAL SINGLE-STAGE

API 610 OH1 & OH2 Overhung Process Pumps

Time Rolling offers horizontal, single-stage overhung pumps with foot-mounted or centerline-mounted casings for light- and medium-duty process applications.

Explore the operating envelope ↓

TWO MOUNTING ARRANGEMENTS

API 610 OH1 and OH2: the structural difference

OH1

Foot-mounted casing

The casing is supported by feet below the shaft centerline. The impeller is overhung from the bearing assembly in a horizontal, single-stage layout.

OH2

Centerline-mounted casing

The casing is supported at the shaft centerline. This support arrangement allows casing thermal expansion about the shaft centerline and is considered when reviewing elevated-temperature duties.

Select the mounting arrangement together with the operating temperature, piping loads, installation constraints and maintenance requirements. The final pump configuration is reviewed against the specified duty.

CONFIGURATION

Design options for the process

Special designs can be considered for other applications. Options are selected to suit the liquid and operating conditions; they are not included in every pump configuration.

Open, low-flow or recessed impellers
Non-clog casing
Heating jacket
Special construction for high suction pressure
Self-priming design

OH1 / OH2 FAMILY RANGE

Operating envelope

Pressure: 13.5 MPa max.
Flow: ～2600 m³/h
Head: ～300 m
Temperature: 450 °C max.

Materials, sealing arrangements, inspection and testing requirements, and any required API 610 compliance are agreed during technical review for the selected pump.

Pump assemblies and details

5 real photographs

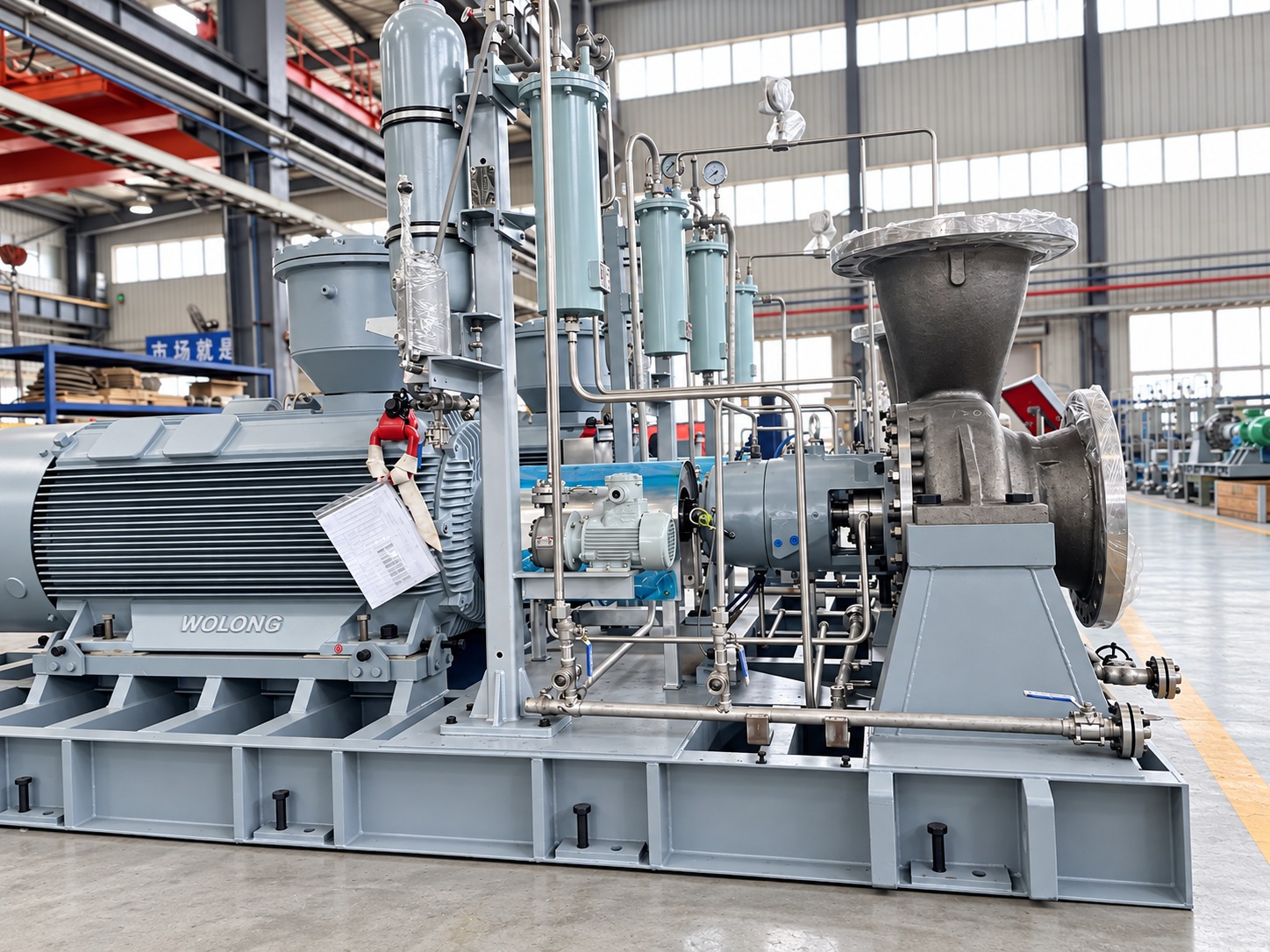

Side view of a motor-driven pump with auxiliary vessels and pipework.

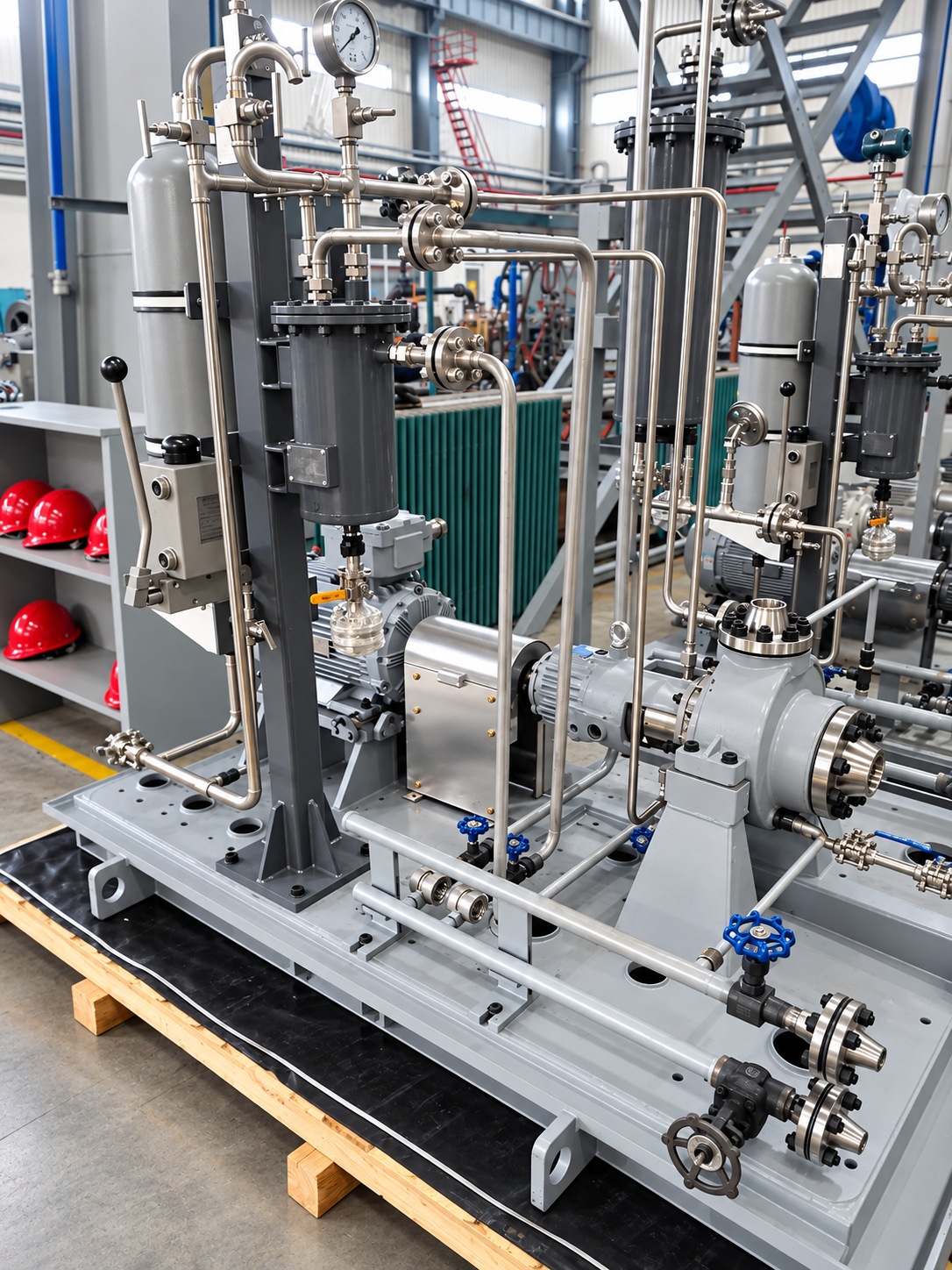

Baseplate-mounted pump with auxiliary vessels and connected pipework.

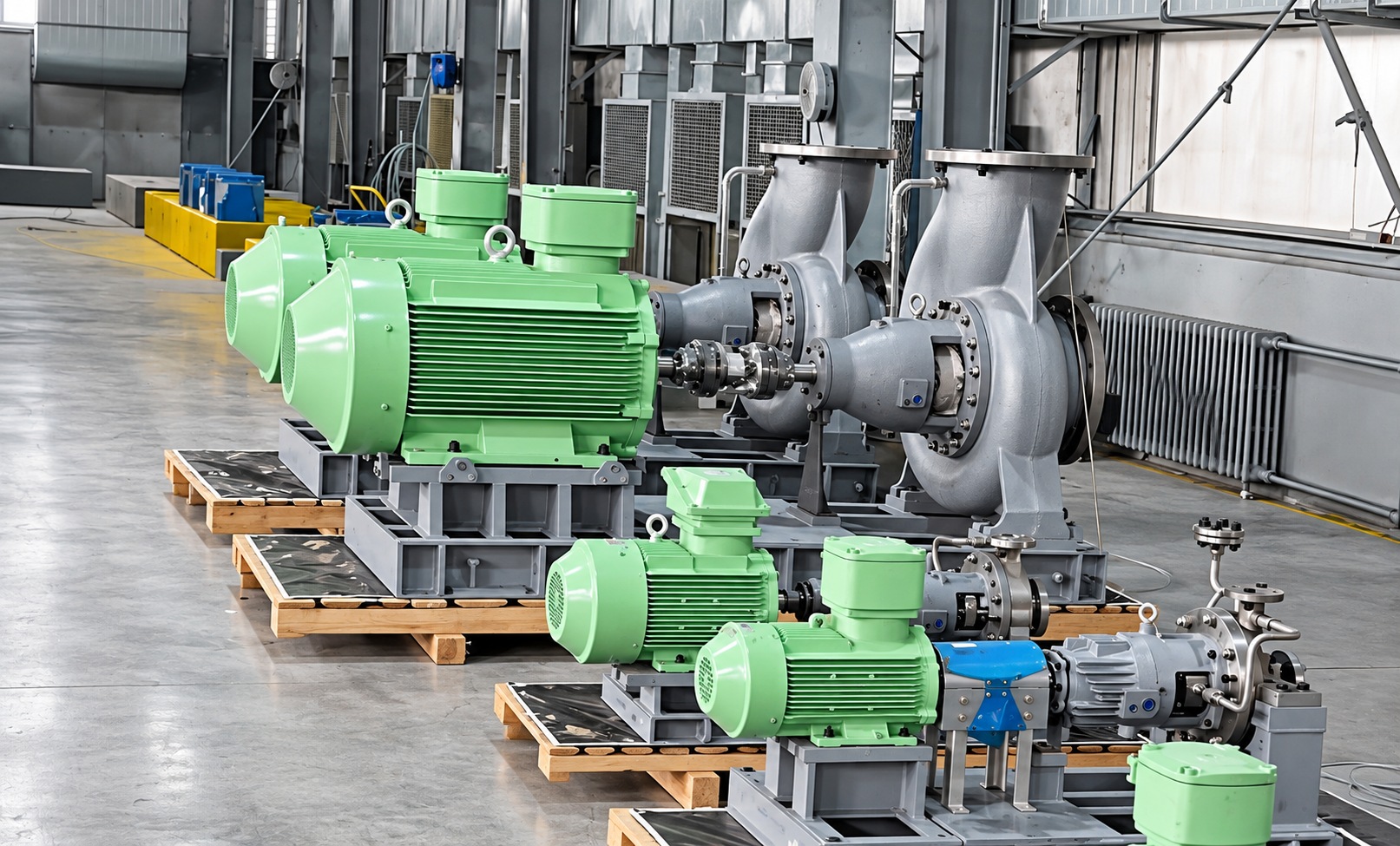

Motor-driven pump assemblies arranged on wooden transport supports.

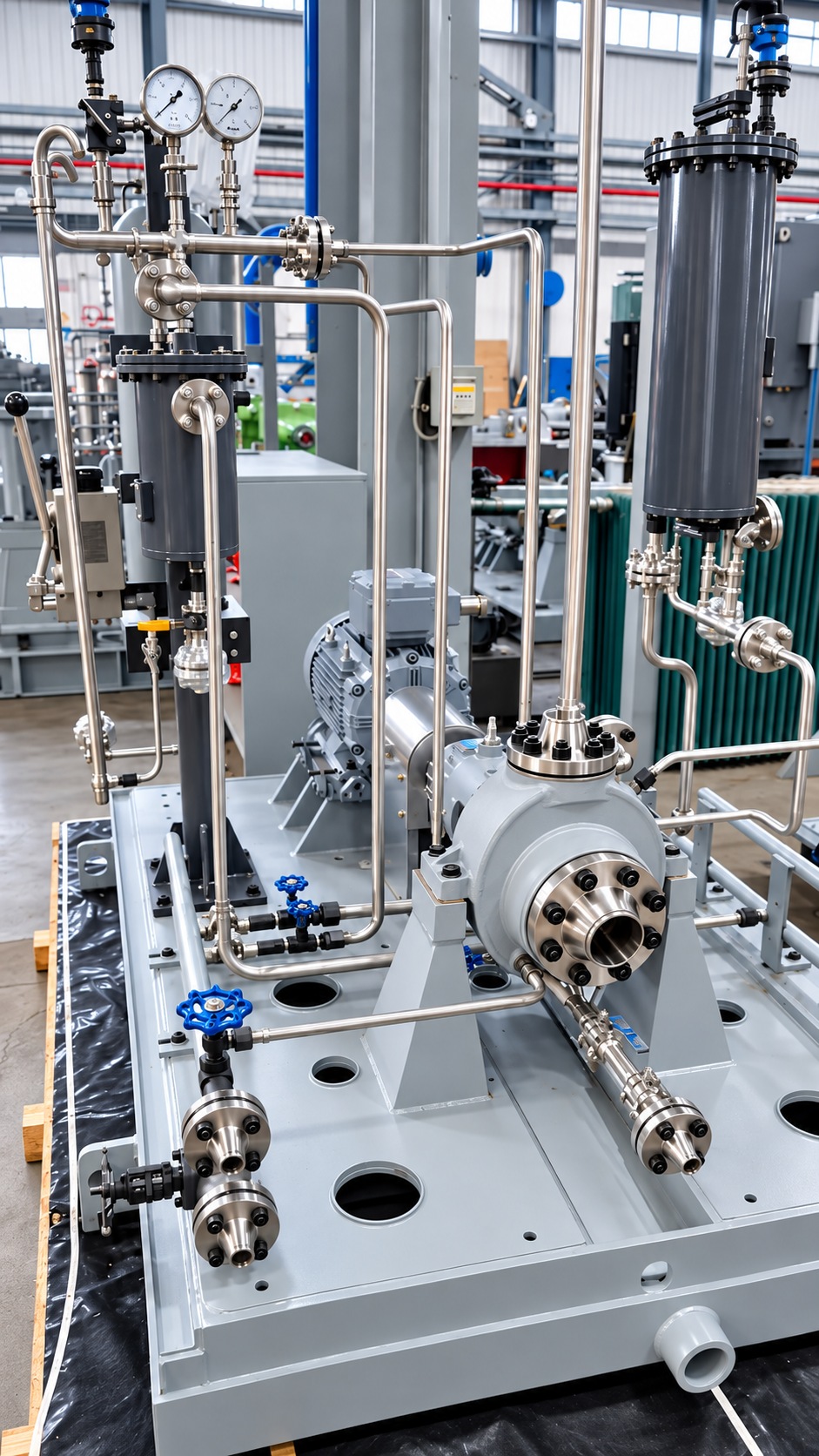

Front view of the pump casing, flanged inlet and auxiliary piping.

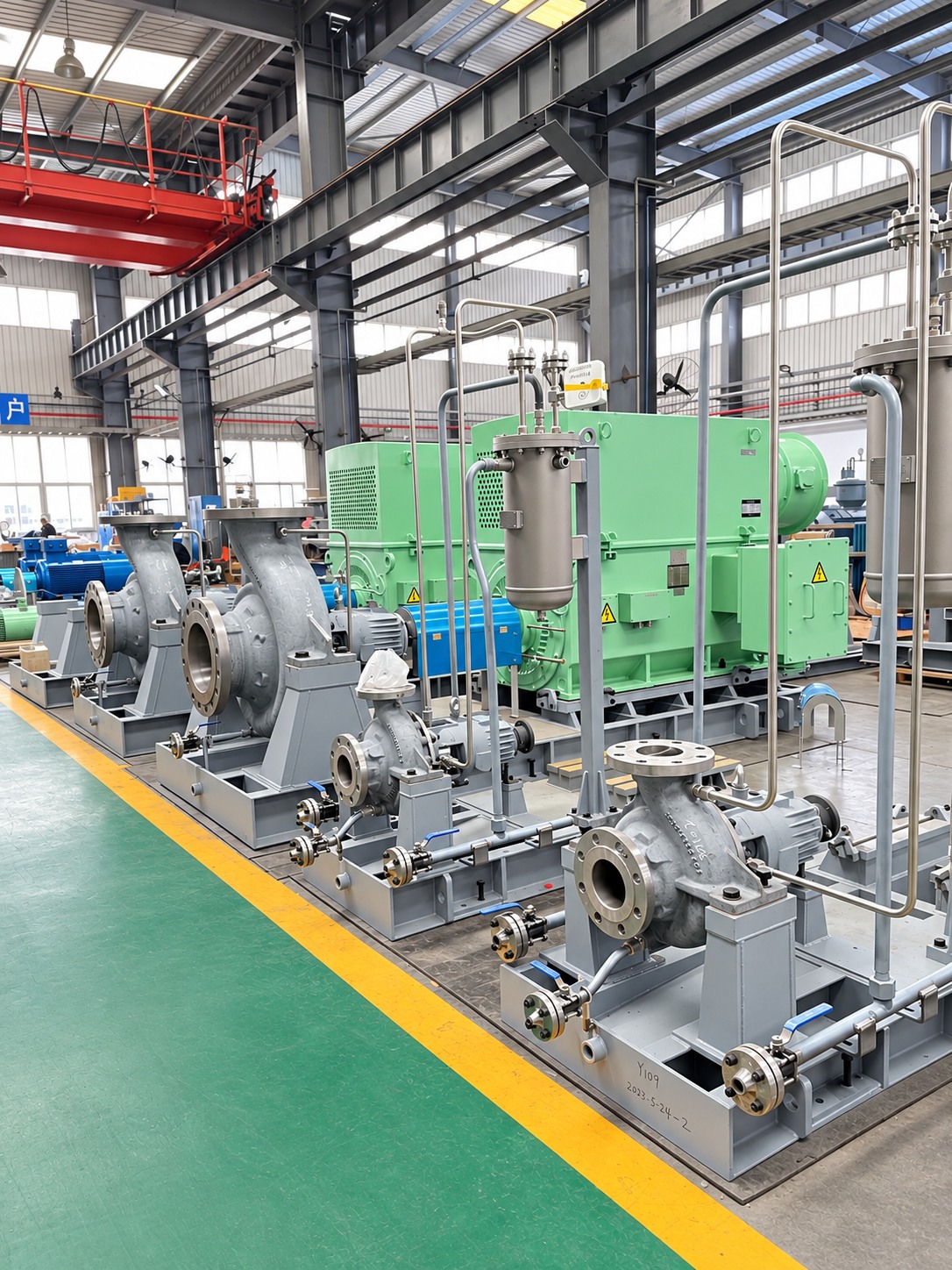

Pump assemblies of different sizes arranged in the workshop.

More about our pump and parts

The range serves light- and medium-duty process applications. Liquid properties, solids content, suction conditions and temperature determine whether a standard arrangement or one of the special designs is appropriate.
The offered scope covers horizontal single-stage overhung pumps and the listed special design options, subject to technical review.
The photographs show example assemblies; the motor, coupling, baseplate and auxiliary equipment supplied for an order are defined in the agreed scope.
