Single-casing volute construction
The wet-pit, vertically suspended pumps use a single-casing volute with a single-stage, single-suction arrangement.
VERTICALLY SUSPENDED / SEPARATE DISCHARGE
API 610 VS4 & VS5 Vertical Sump Pumps

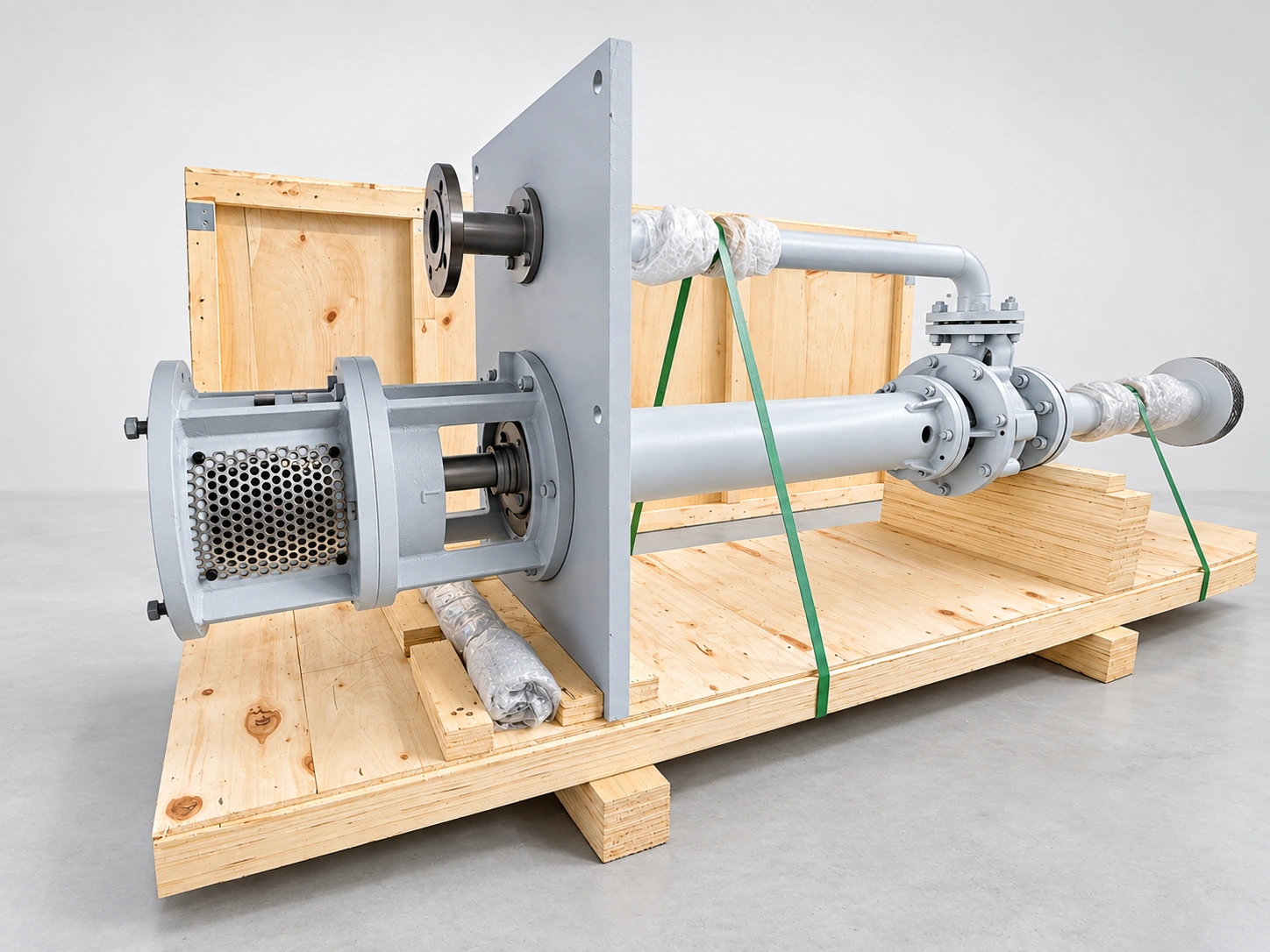

Time Rolling offers VS4/VS5 wet-pit, vertically suspended, single-casing volute pumps with a single-stage, single-suction arrangement and a separate discharge line.
CONSTRUCTION
VS4 and VS5 construction

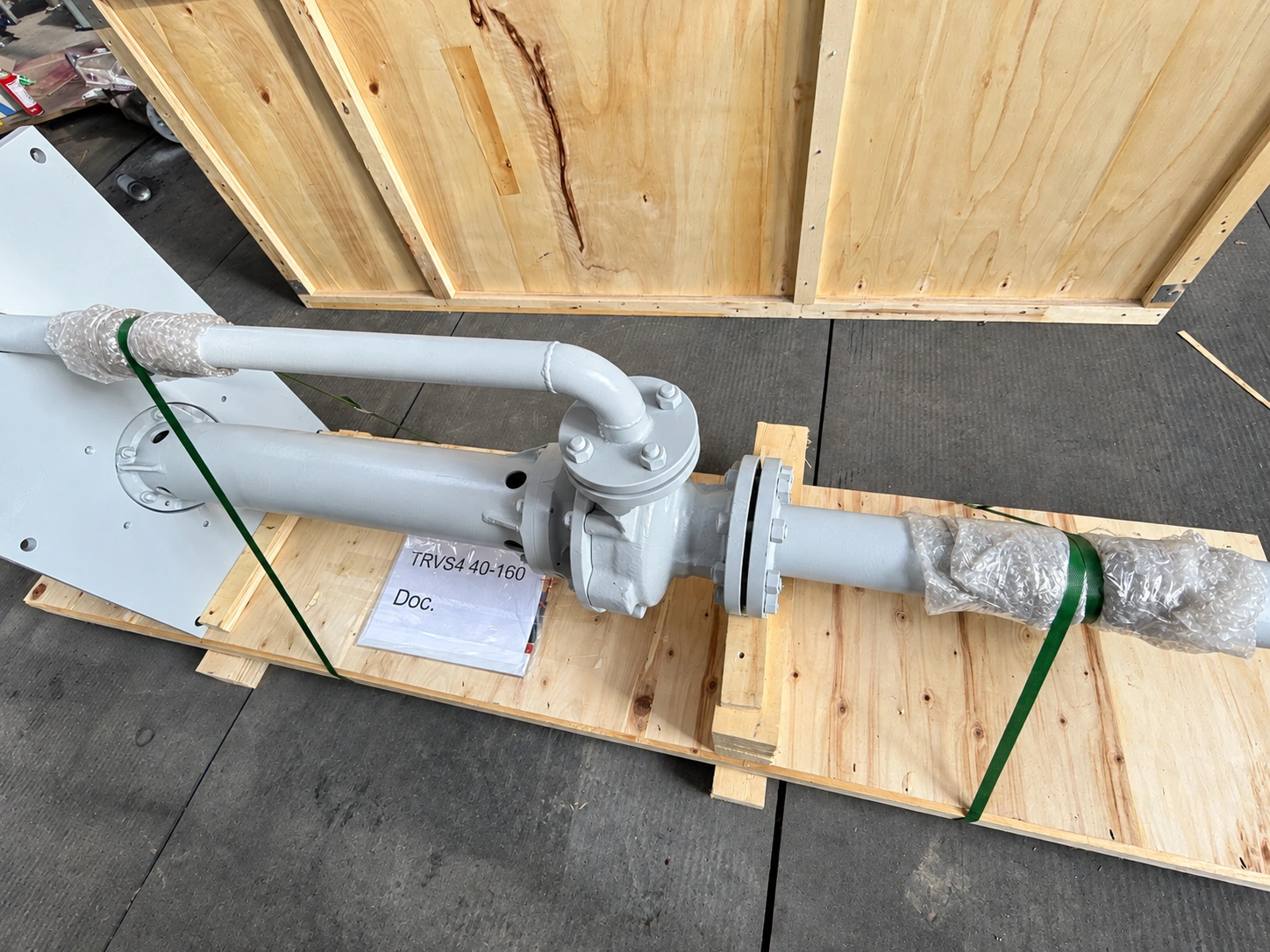

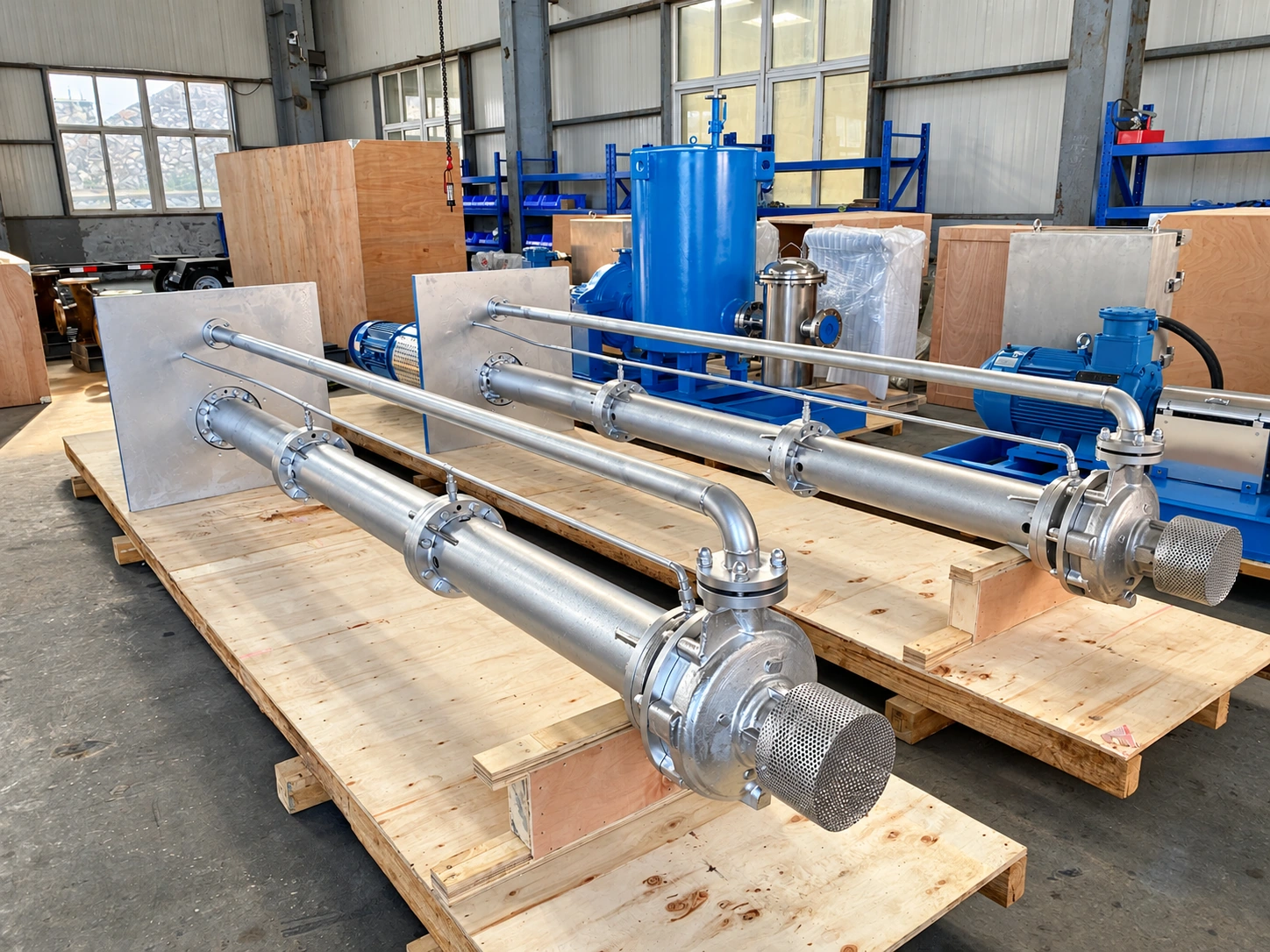

Separate discharge line
The pump arrangement uses a separate discharge line.
VS4 / VS5 FAMILY RANGE
Operating envelope
- Pressure
- 2.5 MPa max.
- Flow
- ～2600 m³/h
- Head
- ～260 m
- Temperature
- 450 °C max.
Materials, sealing arrangements, inspection and testing requirements, and any required API 610 compliance are agreed during technical review for the selected pump.

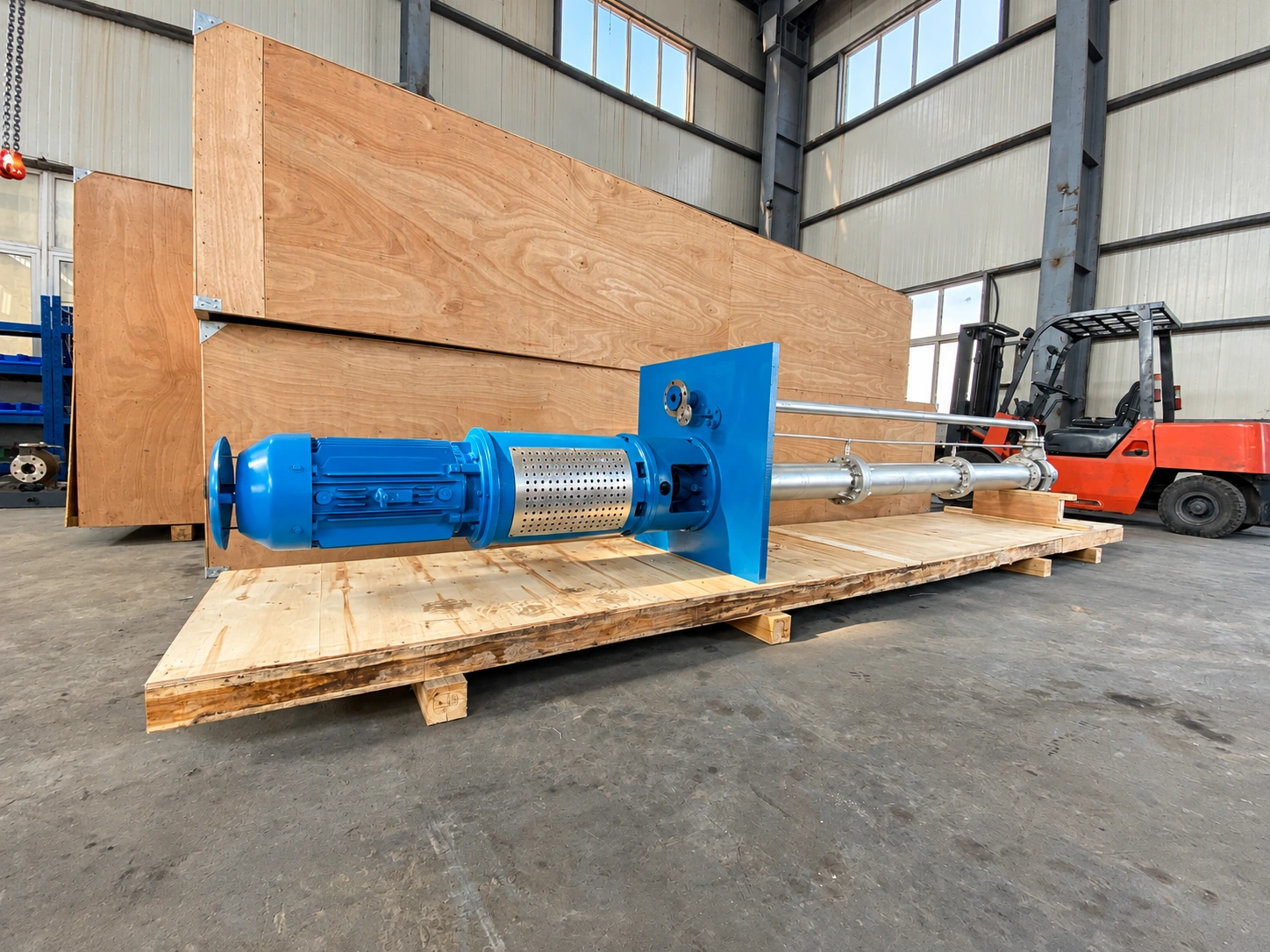

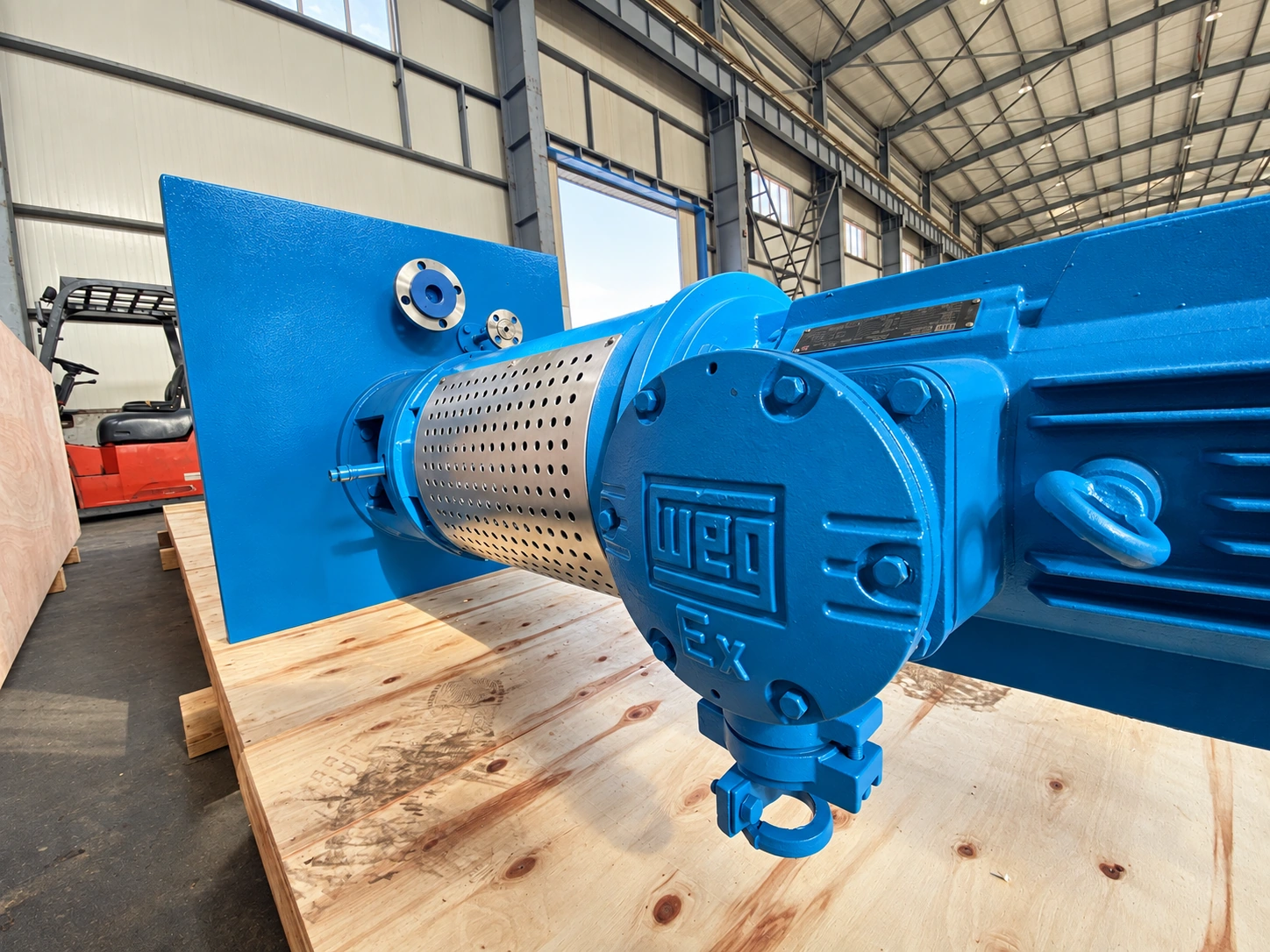

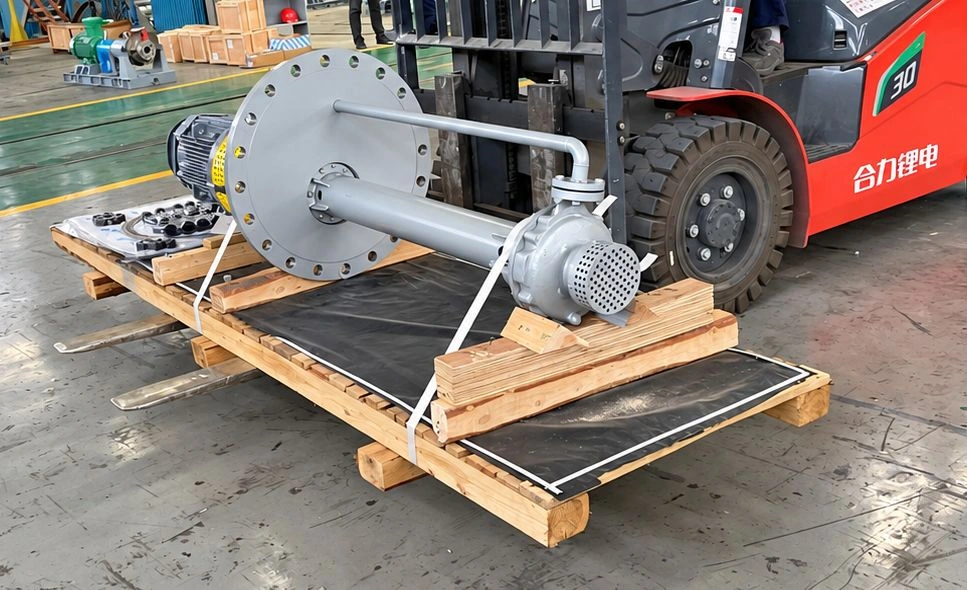

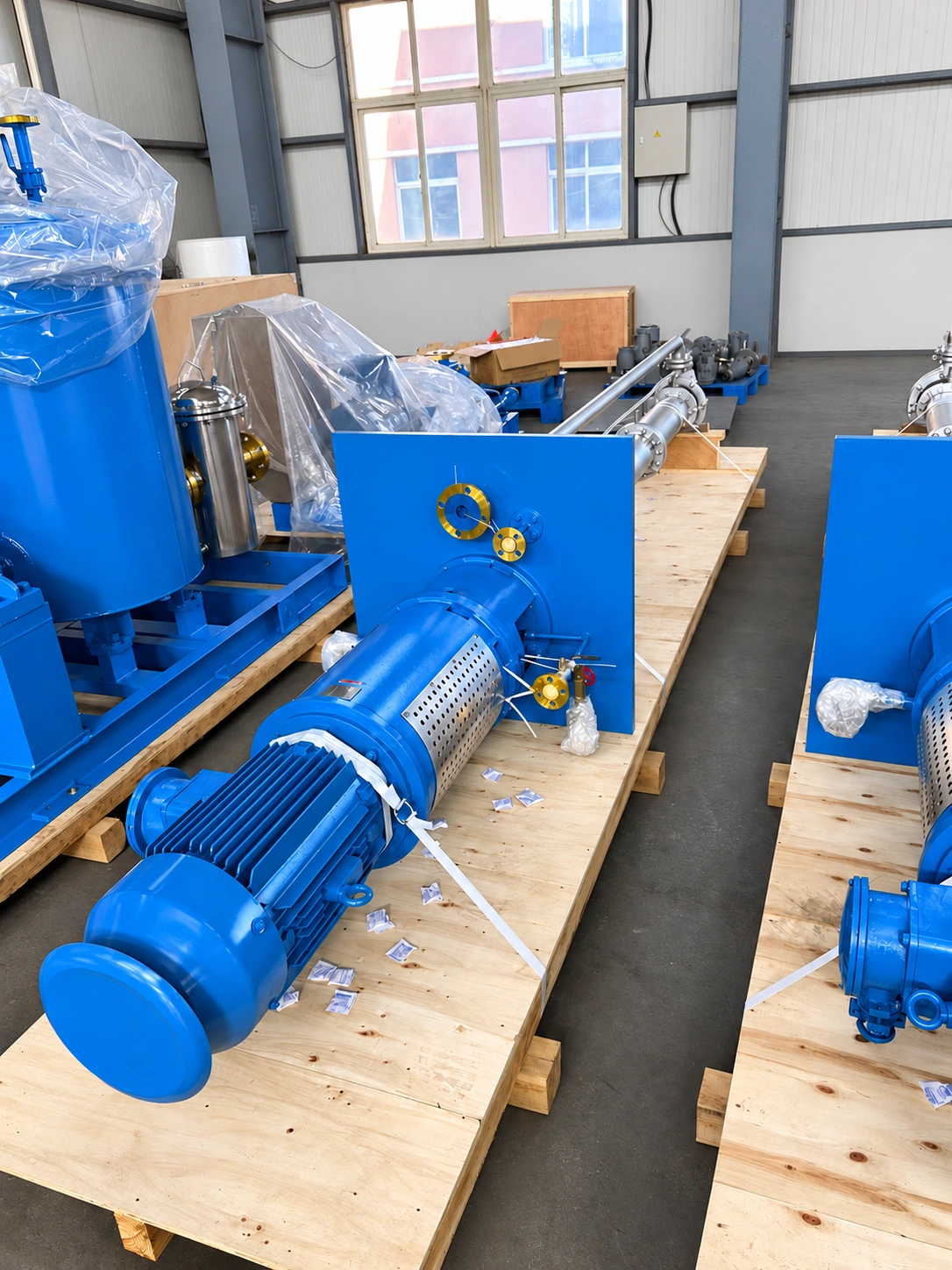

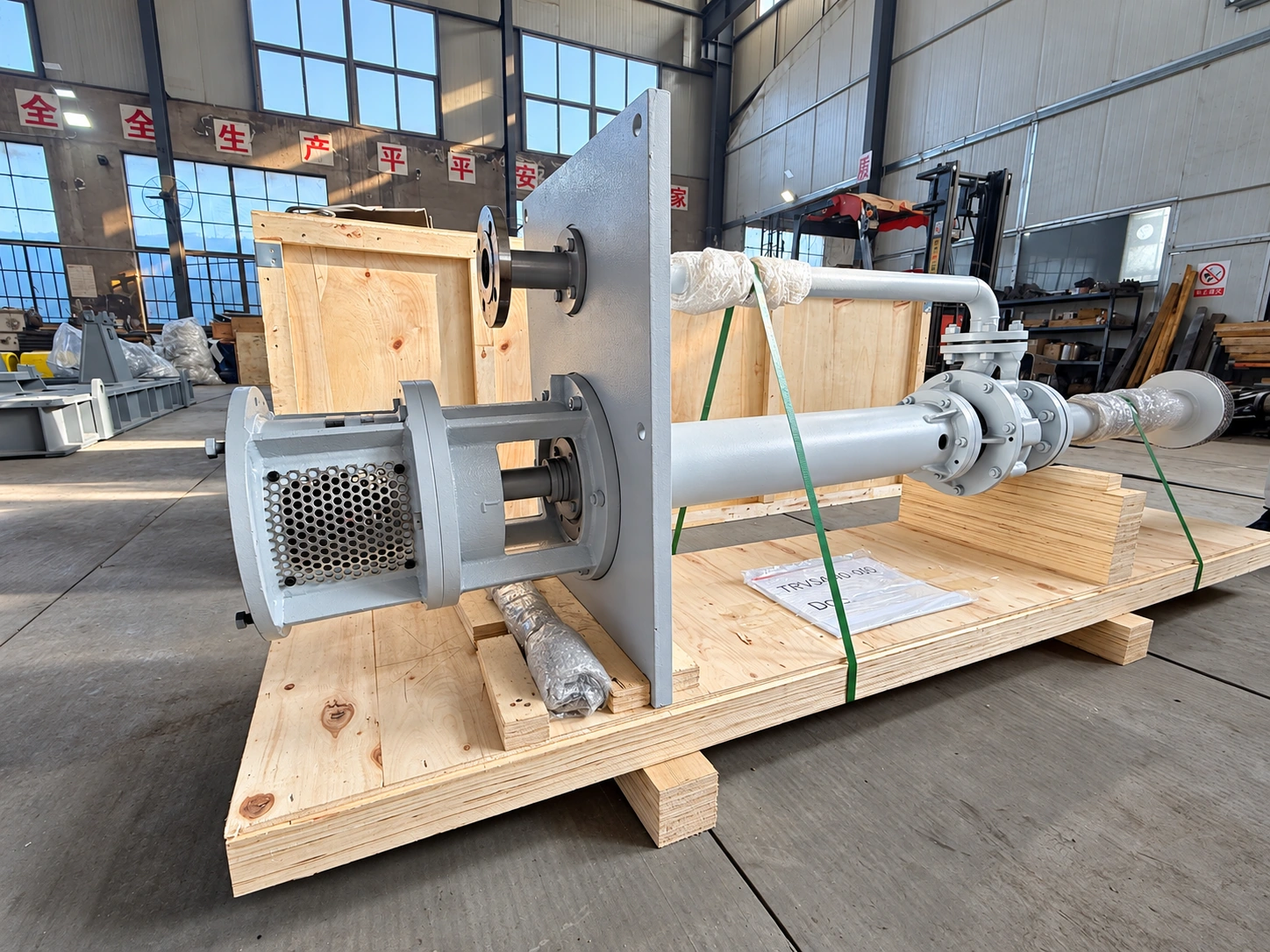

Pump assemblies and details
7 real photographs
More about our pump and parts
- The pumps are used in chemical plants, including applications involving high-temperature molten salt, sulfuric acid and liquid sulphur.
- Special designs are also available for other liquids.
