Automatic Capsule Filling Machine

New structure twelve state totally closed batch type rotating floor. Vacuum feeding powder and capsule can be installed, which are controlled by the PLC touch screen, centralized operation and easy operation. Five point Adjust device has been Simplified which make it easy to clean the powder and increase the working efficiency. Misplacement of module hole, increase the filling precision of powder, filling rod seat will occur big resistance when it working, in order to solve this problem, we have use the way of balance weight, to make sure the safe move of the machine. Automatic switch-over and control the capsule blanking and decrease manually operation, keeping with GMP certification. Division box of RU180 which make sure steady and accurate transmission.

auto capsule filling machine

Model	NJP3200	NJP2200	NJP1200
No. of die orifice	23(Double)	19(Double)	9
Max Output(capsules/h)	192,000	132,000	72,000
Vacuum	110m³/h -0.08-0.04Mpa	110m³/h -0.08-0.04Mpa	27m³/h -0.02-0.08Mpa
Capsules number	00-5#	00-5#	00-5#
Filling percentage	≥ 99%	≥ 99%	≥ 99%
Filling difference	<±3	<±3	<±3
Idle load noise db(A)	< 73	< 73	< 73
Power	380V 50Hz 6KW	380V 50Hz 5KW	380V 50Hz 3KW
Size LWH (mm)	1420x1180x2150	1200x1070x2100	800x750x1950
Weight (kg)	2000	1500	850

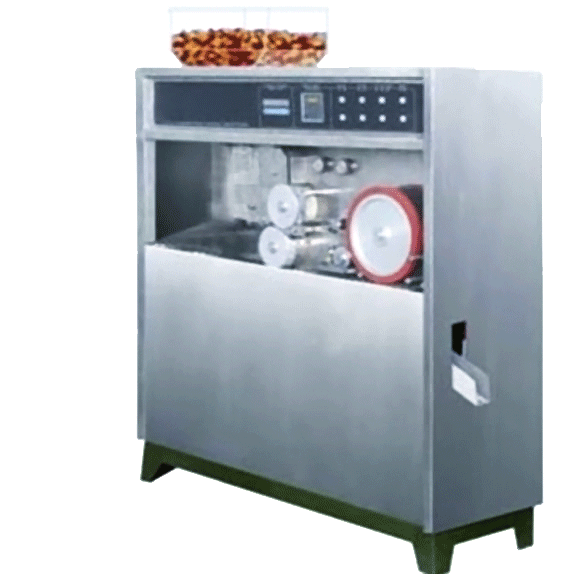

Capsule printing machine

Product:

Usage: This machine is applied to print the outer cap bodies of various specification and different capsules size in a directional and two-color registration manner. And it also can print various characters patterns and trade markets according to the customer’s requirement so as to beautify the appearances of capsules upgrade the product, increase the advisement of product, promote the enterprise image and achieve the effect of forgery prevention.

Function:

The compact machine body makes it beautiful and elegant in appearance. All the surfaces and the external surface of the machine body the drugs can contact are made of stainless steel, so it is up to "GMP" standard.

It employs variable frequency speed regulation and touch type electric control system to make your operation more convenient and free.

This machine features in high productivity and low printing cost. (You can take back the cost of the equipment after it printed 30,000,000 pieces of capsules.

The printing angle for capsule≤270°
