TR-DPH 260 Blister Packing Machine

1, Main parts of our blister packing machine are made of premium stainless steel and alu-alloy material, which are machined by advanced high precision CNC tooling machineries.

2, The 600mm max. Reel size in diameter allow the machine with 180 minutes of uninterrupted production. The waste material trimming cutter is available.

3, Equipped with integrated forming material splicer and automatic format positioning system to achieve straightforward format changeovers.

4, The fast lock method enables replacement of lidding material easily within 15 seconds.

5, Material drag system adopts a precise servo motor to achieve stable, accurate running and allows blister length to be set freely.

6, Sealing cylinder is placed inside the machine’s body to improve machine structure.

7, 100% match pharmaceutical GMP requirements.

Model	TR-DPH 260
Max. Speed:	Alu/Alu 40 punches/min; Alu/PVC 70 punches/min
Max. Output:	280 blisters/min. (Alu/PVC Blister size 57-80mm)
Max. Forming Area:	245x152mm
Max. Forming Depth:	12mm
Material:	Max. Width 260mm
Machine Power:	9.6kW
Machine Dimenssion:	4 Stations: 2400x740x1700mm 5 Stations: 4450x740x1700mm
Machine Weight:	4 Stations: 1,800kg; 5 Stations: 1,950kg

TR-DPH 260A Blister Packing Machine

1, The machine accommodates forming material reels of up to 600mm in diameter

2, Equipped with integrated forming material splicer to enhance efficiency.

3, Automatic format positioning system achieves straightforward format changeover.

4, Window frame type no-waste-trimming cutter saves packaging materials.

5, Adopts transverse cutter which easily collects its blister card and rejects faulty blister.

6, Well connected to subsequent machines, e.g. High-Speed Cartoners, to form a whole pharmaceutical packaging line.

7, 100% match pharmaceutical GMP requirements.

Model	TR-DPH 260A
Max. Speed:	Alu/Alu 100 punches/min; Alu/PVC 200 punches/min
Max. Output:	800 blisters/min. (Alu/PVC Blister size 57-80mm)
Max. Forming Area:	245x180mm
Max. Forming Depth:	12mm
Material:	Max. Width 260mm
Machine Power:	15kW
Machine Dimension:	4800x1250x2000mm
Machine Weight:	2500kg

Electric Tablet/Capsule Counting Machine

1, 10-channel counting machine with Microcomputer System provides high accuracy operation.

2, Equipped with Premium Infrared Sensor (Made in Germany) to increase the infrared intensity automatically for 100% counting accuracy .

3, Suitable for counting any sizes and shapes of capsules, softgels, tablets, round pills etc.

4, Accurate counting system, No bottle—No fill!

5, 100% match GMP requirements.

6, Compatible design allows for attaching a capping machine, a labeling machine and a cartoning machine to become a line-up production.

7, Automatic rejection system rejects faulty products.

Model	Electric Tablet/Capsule Counting Machine
Max. Capacity:	7500pcs/min for Dia 5mm Tablet Max.
Size of Capsule	#000-#5 Capsule
Size of Tablet	Dia 23mm Max.
Size of Bottle	15-500ml
Voltage	AC 220V, Single Phase, 50/60Hz
Power	600W
Air Consumption	0.05 m3/min
Hopper Volume	30ltrs
Overall Dimension	1300x1500x1900mm
Weight	280kg

Filling Machine

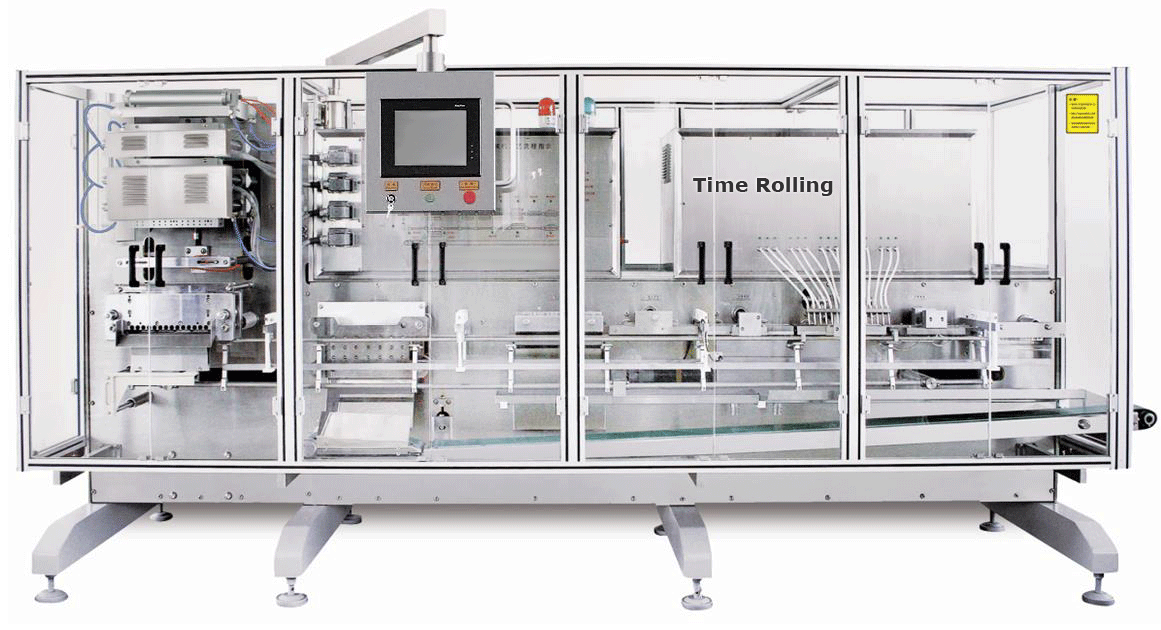

Plastic Filling and Sealing Packing Machine

1, Material of high-quality stainless steel, according with GMP standard.

2, All 22 processes controlled by programming.

3, Controlled by PLC, stepless frequency conversion and variable speeds.

4, The large color man-computer interface is simple and easy for operation.

5, Using world Top Brand main components.

6, The filling head doesn’t drop, leak, arise bubbles or spill over.

7, Durable and low maintenance

Model	PFS
Max forming depth	13mm
Cutting frequency	<22time/min
Packing speed	<20 plates/min 8~16 flasks/board
Dimensions of pvc/pe	0.3*345mm
Capacity	1~60ml
Air consumption	110l/min
Water consumption	6l/min
Power	380v 50hz 12kw
Size	388018001920
Weight(kg)	3400
