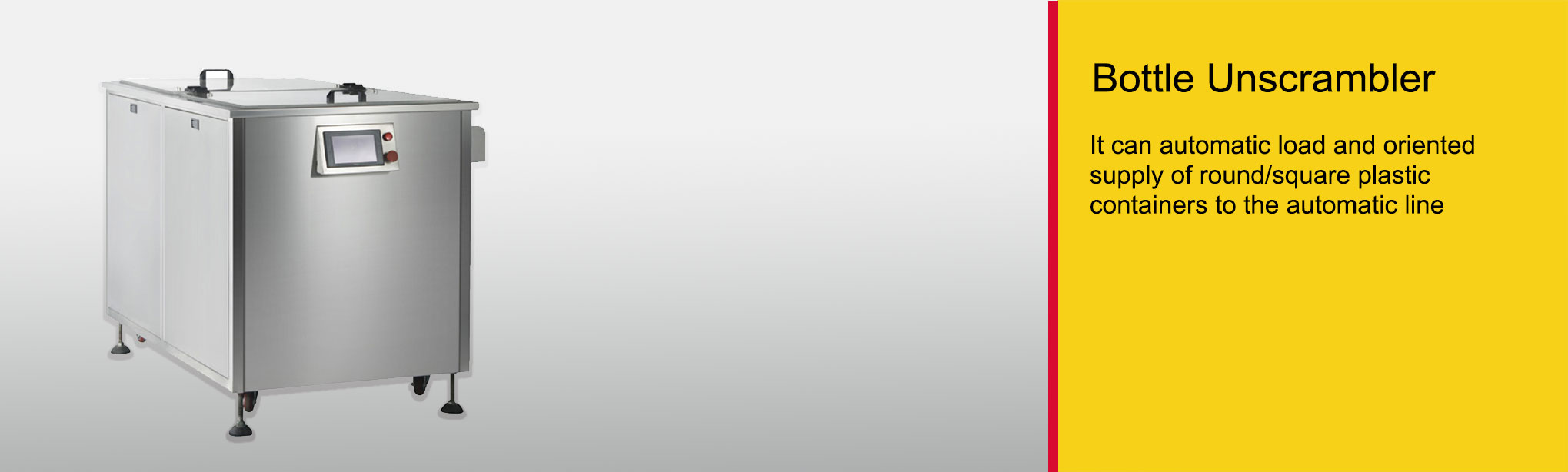

Bottle Unscrambler

TR’s Bottle Unscrambler machine is used for loading and oriented supply of round/square plastic containers to the automatic line .
Compact design with enclosed built –in hopper and disc sorter for noise elimination and space saving.
Bottles are discharged upright and properly arranged onto conveyor with the sensor system.
Rejection system for mouth-downward bottle.

Bottle Unscrambler

Model	TRZ-120
Max. capacity	Max. 150 Bottles/Min
Size of Bottle	15-300ML
Voltage	AC220V , Single Phase, 50Hz
Power	1kW
Overall Dimension	1100 (L)2000(W)1230(H)mm
Weight	250kg

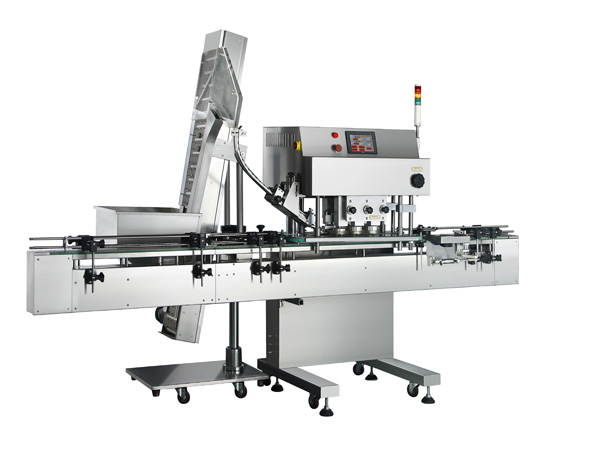

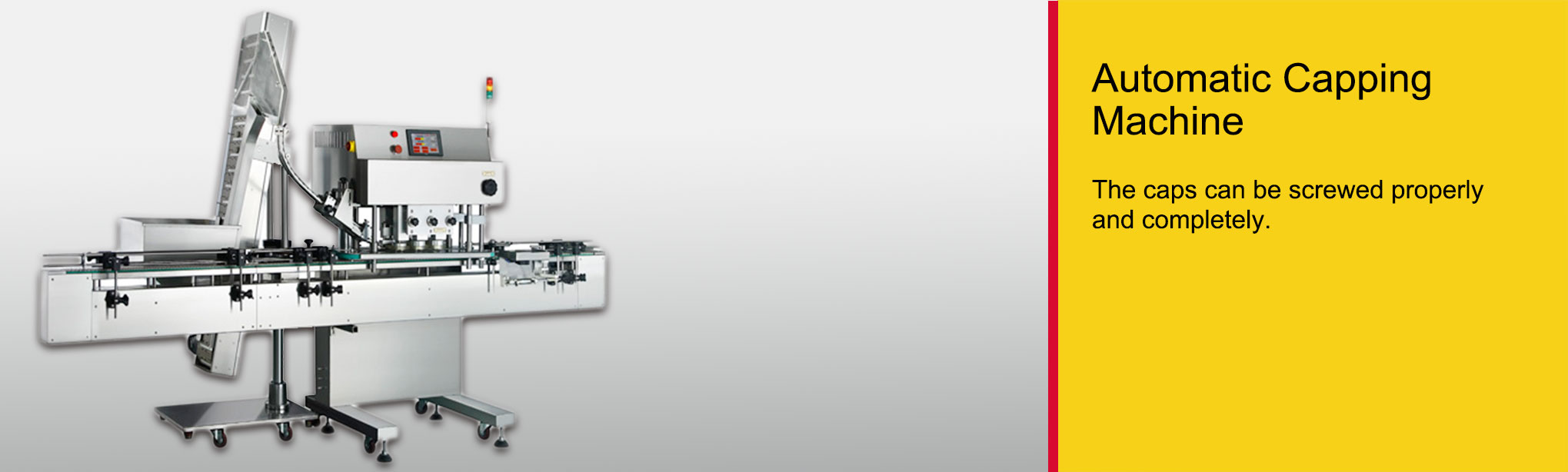

Automatic Capping Machine

1, Applicable for different -size round, rectangular and most irregular bottles and containers without spare parts change over .

2, Stainless steel SUS 304 main machine frame and housing .

3, Large capacity floor level cap hoper to stock caps for long -time running without continual refilling.

4, Three groups of capping wheels with digital knobs to screw the caps properly and completely.

5, The third group capping wheels which equips slipping piece to detect the caps screwed properly or not.

6, The machine will pause automatically if the bottles are absent or choked in the conveyor belt.

7, Rejection system for improperly capped bottles and/or missing foil caps.
Automatic Capping Machine

Model	TRG-120
Max. capacity	Max. 120 Bottles/Min
Size of Cap	Dia. 15-70MM
Size of Bottle	15-500ML
Voltage	AC220V , Single Phase, 50Hz
Power	850W
Overall Dimension	2385 (L)700(W)1950(H)mm
Weight	440kg (with conveyor)

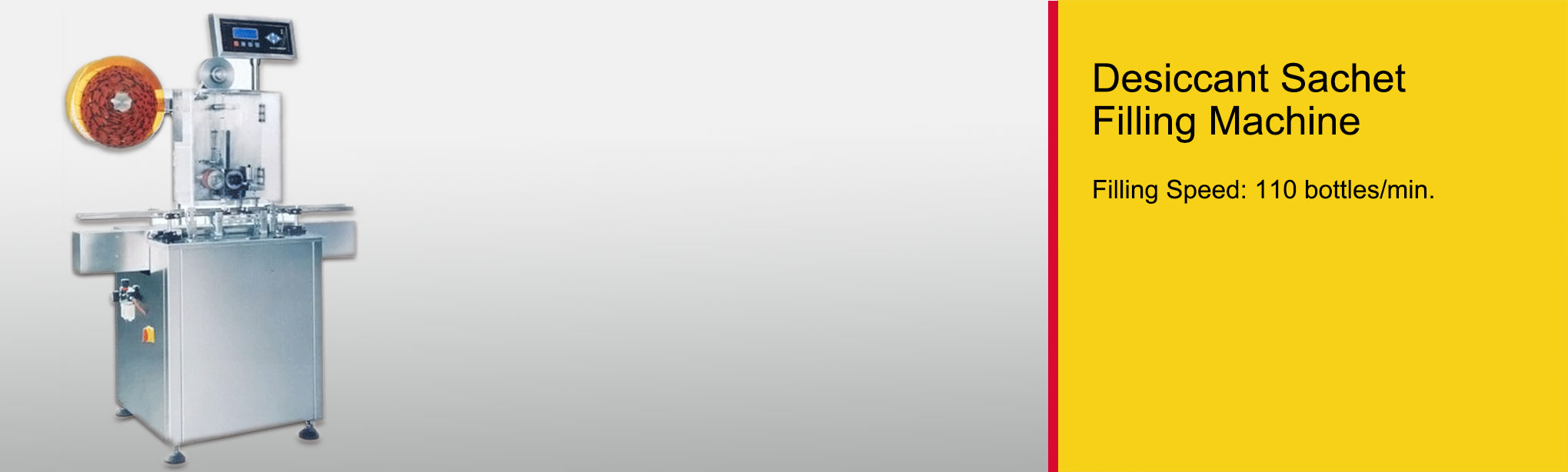

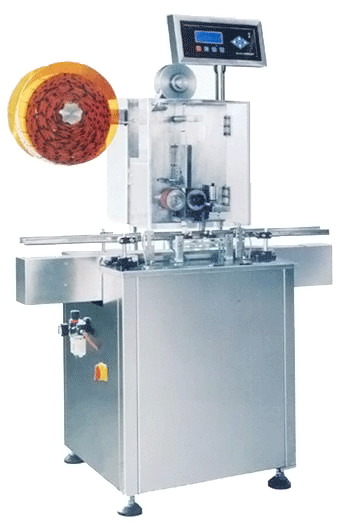

Desiccant Sachet Filling Machine

This machine is used for filling Unit Desiccant Sachet into containers which prevents tablets or capsules humidity.
Desiccant Sachets adopts Ribbon Type.
1 set desiccant sachet transmission system with sensors .
Two blades cut unit desiccant sachet from the ribbon and the sachet fills into the container exactly.
The machine will pause automatically if the containers are absent or choke in the conveyor belt.
Meets GMP requirement.

Model	TRGZ 120
Capacity	110 Bottles/min Max.
Size of Container	15-300ml
Voltage	AC220V, 50Hz
Power	0.35kW
Air Consumption	0.18 m3/h
Overall Dimension	1100mmx500mmx1500mm
Weight	200kg

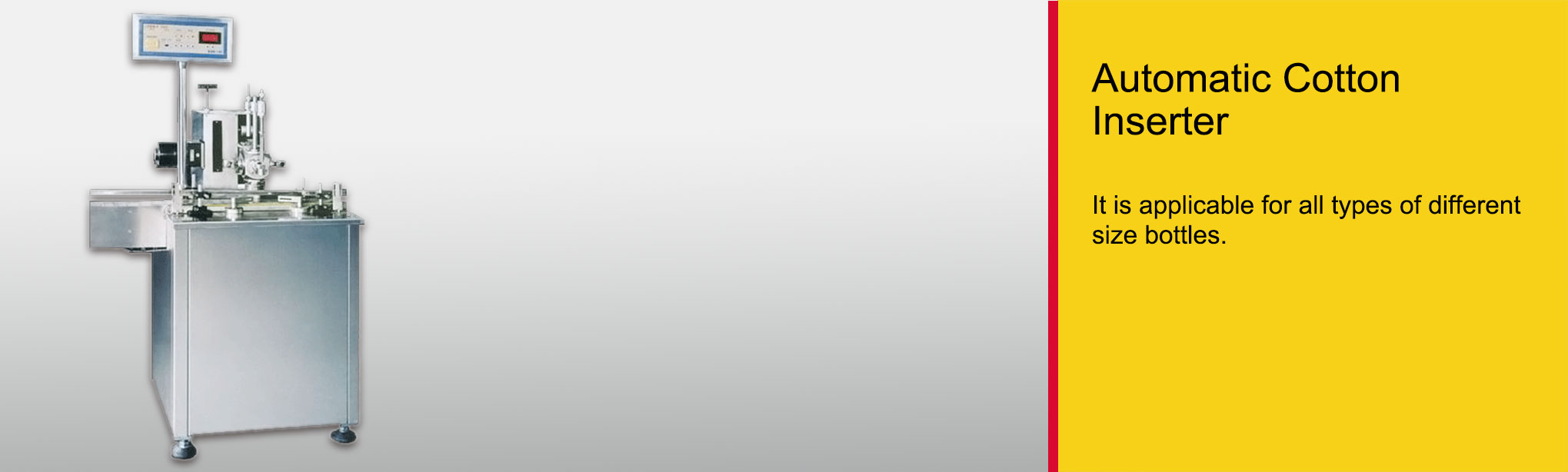

Automatic Cotton Inserter

TR's Automatic Cotton Inserter is suitable for all type of different size bottles without parts change over.
Automatic stop system for absent and choke bottle.
Meet GMP requirement.

Model	TRGZ 120
Capacity	70 Bottles/min Max.
Size of Container	40-250ml
Voltage	AC220V, 50Hz
Power	0.35kW
Overall Dimension	1100mmx850mmx1500mm
Weight	230kg

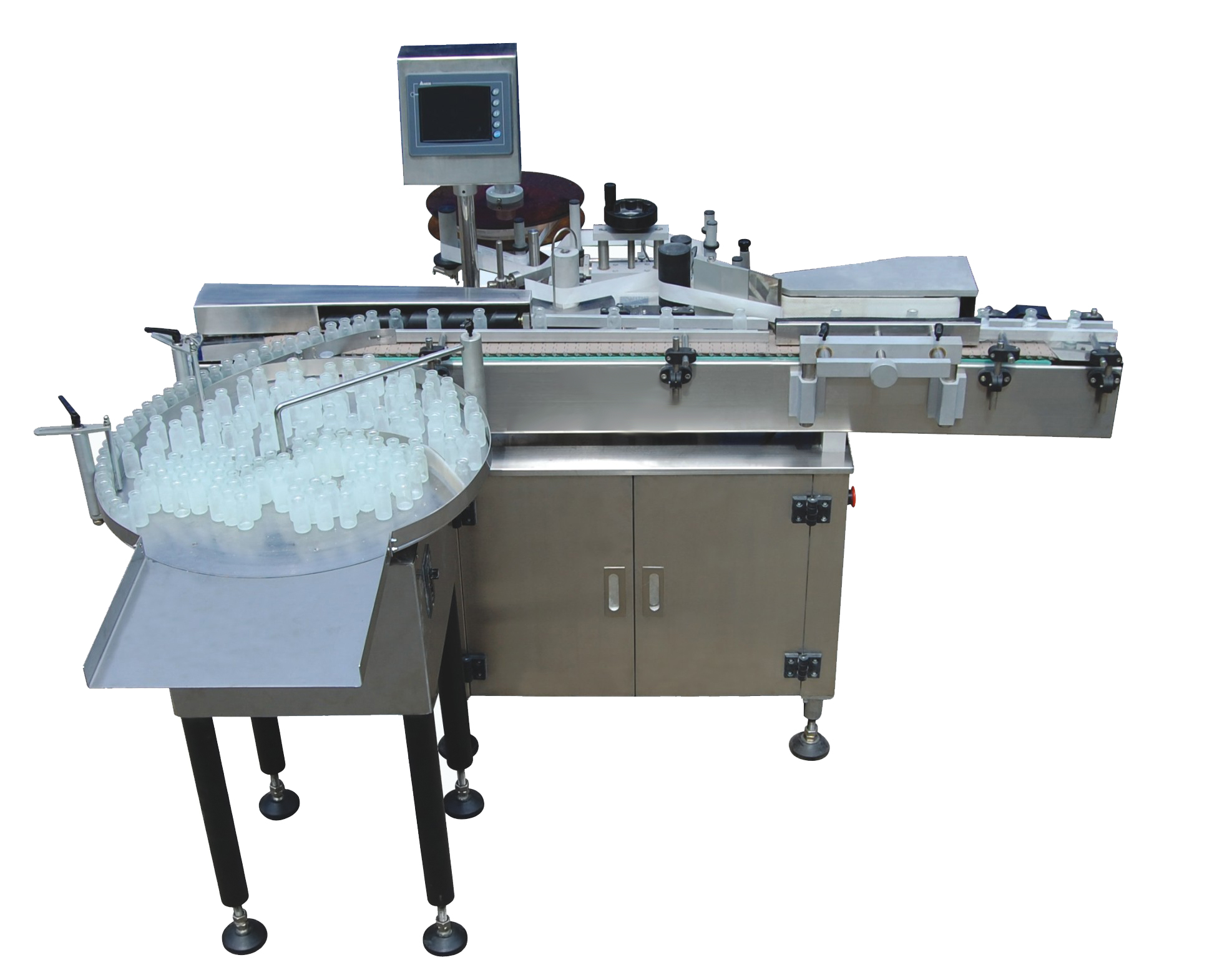

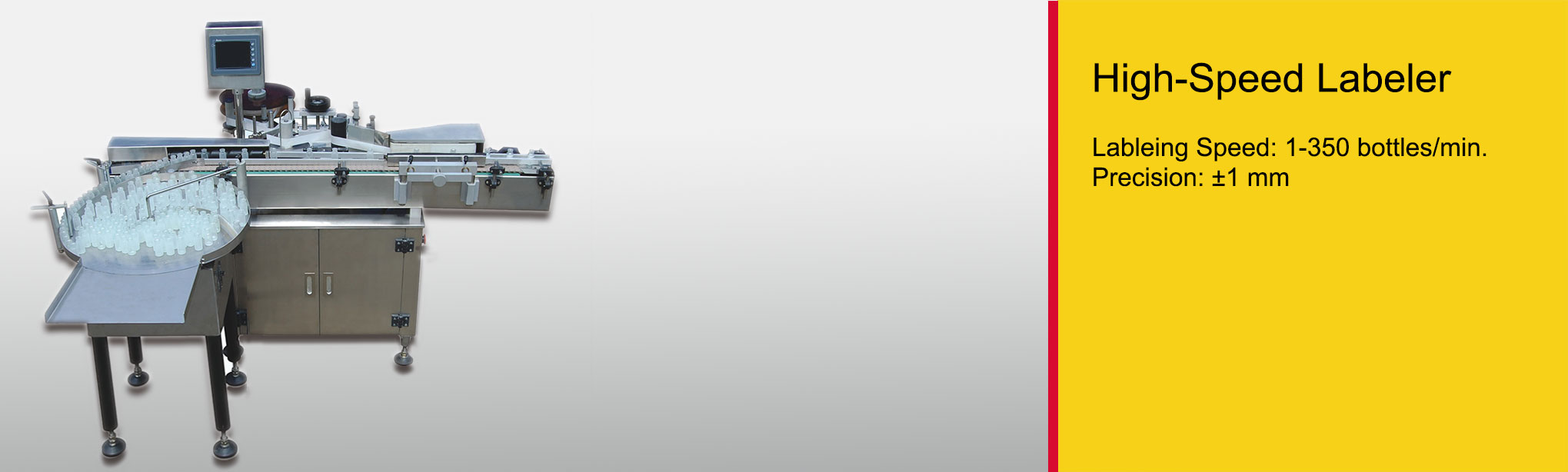

High-Speed Labeler

TR’s labeling system use the most advanced fully automatic adjustment mode without manual adjustment of the parameters, no need to move the location of the sensors installed.
To switch to a different label or bottle at once as long as the standard testing process can have a complete PLC system automatically adjust the parameters.

Name	High Speed Labeler
Labeling Speed	0~350bottles/minute
Precision	±1mm
Inner Diameter Roll	φ75mm
Outer Diameter Roll	φ300mm
Products Diameter	φ15mm~φ100mm
Label Width	30mm~70mm
Label Length	15mm~250mm
Conveyor Direction	L→R/R→L
The Width of the Conveyor Belt	100mm
The Way of The Distribution of The Bottle	Sponge Round(Standard) Screw(Option)
Electrical Requirements	220V50HZ
Power	700W
Dimension	2000mm×910mm×1665mm
Weight	230kg

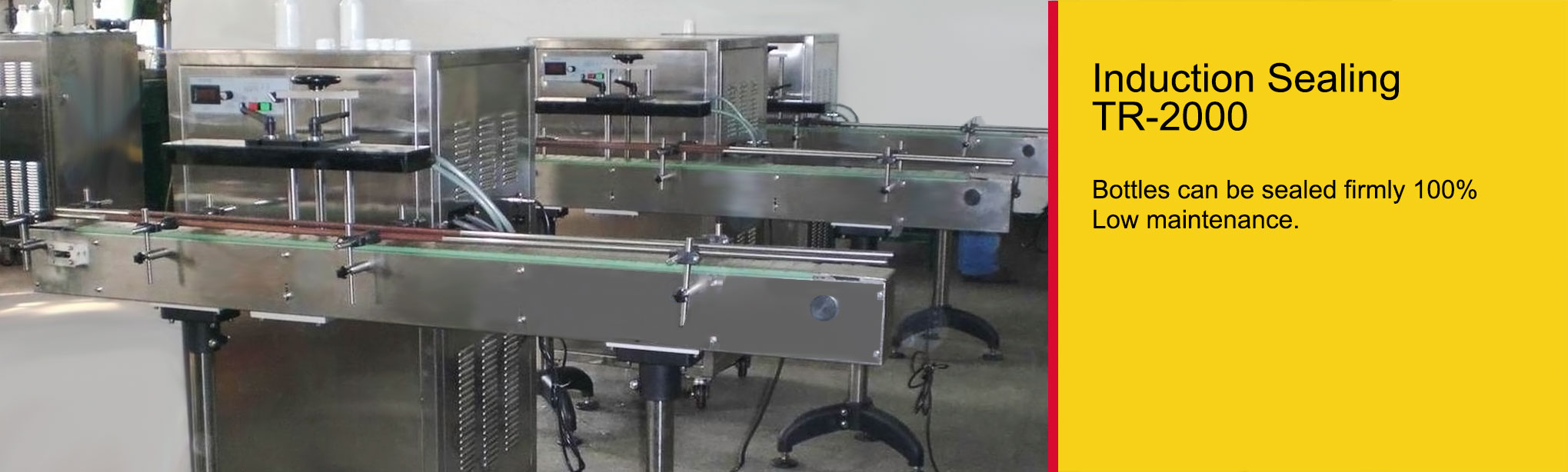

Aluminum Foil Sealing Machine

Electromagnetic inductive aluminum foil sealing machine uses the electromagnetic inductive theory with the transistor modular design.

When a bottle is passed through a magnetic field with high frequency, aluminum foil over the mouth of the bottle will produce high heat instantly under the effect of high frequency. The heat will be transmitted to thermal film in a very short time, so the thermal film is fixed to the mouth of the bottle firmly and seals the bottle. This sealing machine can be widely used in industries that require sealing such as medicine, food, cosmetics, pesticide and chemical products to prevent moisture, mold and theft. Bottles that can be used include non-metal bottles made of PE, PP, PET, PS, ABS and glass etc.

The machine will not touch the mouth of the bottle during its operation, and the bottle will be 100% sealed firmly.
Aluminum Foil Sealing Machine

Model	TR-2000
Sealing Diameter	20-75mm
Speed	0-200 bottles/minute (Depending on the diameter of the bottle)
Electrical Requirements	220V50Hz
Power	2.5KW
Output Power	80kW
Weight	Sealer: 5kg, Conveyor: 40kg
Dimension	Sealer: 815mm900mm1217mm Conveyor: 1800mm445mm835mm
Cooling System	Circulating Water
